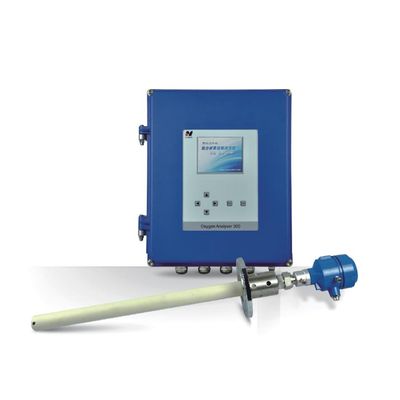

Enviro - Zirconia Oxygen Analyser

FromEnviro Solutions Technology Co.,Ltd

SHARE

It applies to the measurement of oxygen content in high-temperature atmospheres in industrial heating devices such as metallurgy, electric power, heat treatment, ceramics, cement, etc. In-line structure, the fast response speed of the probe, direct conversion of oxygen content into electrical signal output, real high-temperature detection, the probe is made of a high-temperature resistant sensor, corundum ceramic protective tube. The patented ceramic probe protector is resistant to corrosion and high temperature and can withstand up to 1700 ? high temperatures.

Most popular related searches

oxygen analyzer

zirconia oxygen analyzer

high temperature furnace

temperature monitoring

calibration gas

temperature probe

atmospheric temperature

Range : 0-20.9 %
Response Time : 1-5S when the atmosphere changes are measured in the probe measuring section Within 3S achieve 95% response when inlet calibration gas
Precision : 2%FS
Power Supply : 220V,50HZ
Warming Time : 10 mins

O2 Probe

Temperature Measurement Range of Oxygen Probe : 600-1000?(The oxygen probe adopts 310S protective tube)
1000-1700?(The oxygen probe adopts ceramic protective tube)
Measured Gas Pressure : -5-5Kpa
Transmitter Communication : RS485(Optional )
Probe Pipe : 500mm,800mm,1000mm(it can be customized)
Probe Material : SUS316
Explosion-proof grade : ExdII CT6(Optional)

Transmitter :

Installation Environment Temperature of Transmitter : -10?-50? Humidity <90%,
Output : 4-20mA ,two channels alarm output, RS232 or RS485 optional
Installation Method : Wall mounted
Structure : Oxygen probe adopts waterproof design. It can be installed outdoors. Transmitters and maintainers are wall-mounted. It is waterproof and can be installed outdoors.

Application furnace type:

Industrial heating furnace,
Refractory plant tunnel kiln,
Heat treatment furnace,
High-temperature atmosphere sintering furnace,
Cement rotary kiln,
Garbage incinerator, etc
