Now as a leading SWIR technology company in Asian, the 14,000 square feet fabrication department operates in an ISO 9001:2008 certified fabrication facility that contains several III-V foundries with Class 100 to 100,000 cleanrooms for wafer fabrication, chip packaging, and device testing.

We specialize in creating cost-effective solutions that meet our clients` specifications, timelines, and budgets in SWIR fields. At GHOPTO domestic and international clients receive full access to unrestricted performance and full supply-chain control: from the unprocessed starting material (usually epitaxy) to fully packaged production devices such as IR imagers/cameras, lasers, waveguides, and systems.

GHOPTO is well known as the very first commercial InGaAs imaging manufacturer in China. Our technical team consists of top world-renowned experts from China and Canada, with headquarters in Shanxi Taiyuan, and branch offices in Wuhan and Beijing. We truly believe research and innovation are the pillars of future growth. We also believe our research partnerships with several industrial-leading partner universities, as well as in the private sector, to efficiently and effectively drive technological breakthroughs in shortwave IR fields.

OEM Service

Super clean production and processing workshop covers an area of 1300 square meters, can provide test wafer processing, chip packaging, components and other services

Standard InGaAs Device

Short wave infrared InGaAs product series include: short wave infrared and visible short-wave infrared focal plane array detector array detector, and the camera

Customize The Infrared Device

Advanced imaging techniques, such as colloidal quantum dots (CQD), APD and T2SL focal custom infrared device
Advanced imaging techniques, such as colloidal quantum dots (CQD), APD and T2SL coke planar array detector

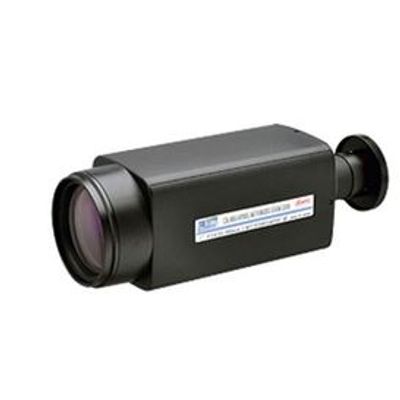

GHOPTO - Model F25-300 F2.8-32 -Zoom SWIR Lens

Features
