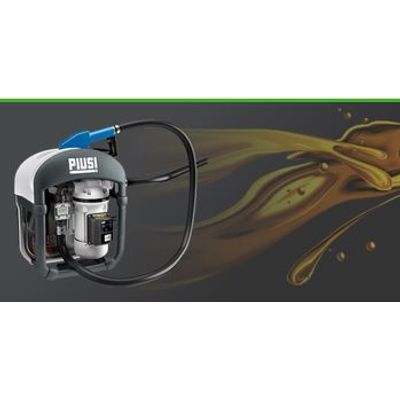

Zuwa - Model PRO und BASIC -Fuelling Kits

• Powerful self priming diaphragm pump
• Digital flow meter K24 (type PRO)
• Suction hose with quick coupling
• 6 metre supply hose
• Automatic nozzle (on PRO and BASIC PLUS) or manual nozzle (on BASIC)
• Nozzle holder with drip collector

Add-on for cars

for fuelling kits to assemble on IBC containers

• For refuelling cars and trucks with AdBlue® using only one system
• With automatic nozzle and volume flow switch
• With practical plastic nozzle holder and drip collector
• With ball valve to switch between car and truck refuelling
• With plate for lateral mounting on IBC container with nozzle holder

• pump  dry self priming impeller pump with glycol resistant impeller
• max. flow rate  30 l/min*
• max. flow pressure  5 bar
• max. temperature  90° C
• drive  230 V, 50 Hz with overheat protection
• hoses with pressed fittings  EPDM-hoses with ball valves for temperature up to 100°C
• additional equipment  2 m cable with SCHUKO-plug
• container  UV-resistant PE-container with large closable opening, fill lever scale and shut-off valve at the exit, capacity: 30 l
• pressure relief valve
• Change-over ball valve in front of the pump
• trailer  welded, robust tube frame with telescopic handles with softgrip
• dimensions (b x h x t)  760-1000-1100 x 490 x 510
• dimensions of packaging  800 x 400 x 500 (12 units per pallet in shipping
• empty weight  20,9 kg
• Art. Nr.  134052V11PLUS
