Mannesmann Line Pipe GmbH

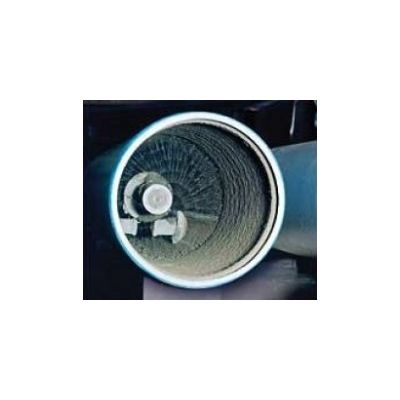

Cement Mortar Lining

SHARE

The main purpose of linings for pipe conveying aqueous media is to provide safe, reliable and lasting corrosion protection. Cement mortar lining fulfils this purpose in two ways. First, it is an effective barrier between the pipe and the medium. At the same time, however, the high alkalinity of mortar actively inhibits corrosion. A further decisive advantage is mortar`s self-healing property, i.e. cracks in the lining close spontaneously in non-aggressive waters.

Most popular related searches
The type of cement mortar lining required depends on the water quality and on the application (e.g. drinking water, untreated water, brines or waste water). It is selected and applied in accordance with DIN 2614 "Cement mortar linings for ductile iron and steel pipes and fittings" in conjunction with DIN 2880 or other international standards or specifications.
