RD Paver Services
An Innovative Package for Quality Assurance Against Asphalt Thermal Segregation. The RD Paver system is designed for real-time monitoring and storage of asphalt paving temperature and paver speed data. The main purpose of monitoring this information is to minimize problems caused by thermal segregation leading to the development of high asphalt air voids content.

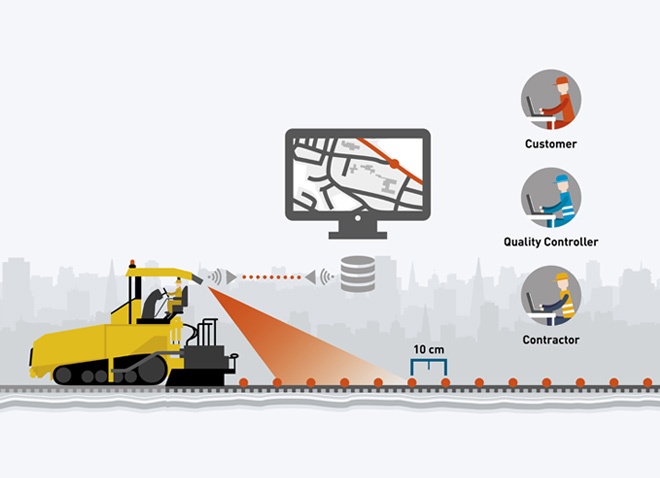

Measurements with a thermal camera positioned directly behind the paver are taken throughout the entire paving process. The collected data is monitored in real-time through a touchscreen monitor on the paver and remotely through the 3G/4G network. The user-friendly RD Paver interface provides users with detailed information and makes it possible to follow up problems and make immediate corrections.
Ultimatelly this technique helps the paving crew to ensure temperature uniformity which is critical to avoiding areas of asphalt segregation and thus achieving the optimal density.
The RD Paver system also includes a website service for real-time monitoring. The results are also stored in a database for later use. Utilization of the website service makes the quality assurance process transparent to everyone involved.
RD Paver system, an innovative self-reporting pavement quality control tool, facilitates, quick and non-destructive segregation control for the entire width of the pavement.

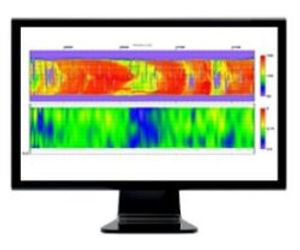

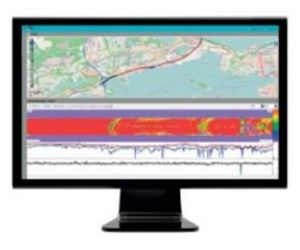

User Friendly Interface

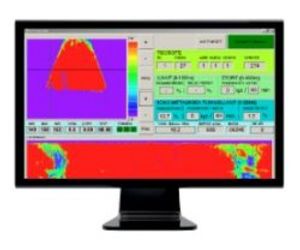

Through the user-friendly Road Doctor Thermal Diagnostics interface the user will be provided with detailed information allowing a real time quality assurance and follow up. Thermal segregation will be avoided.

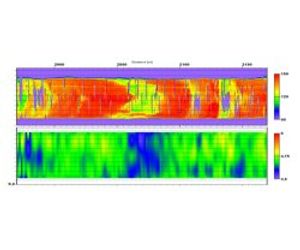

The thermal camera technique detects sections with high void content easily as the paving temperature correlates with asphalt voids.
The Road Doctor Thermal Diagnostics system includes a website service – a real time self-monitoring and self-reporting pavement quality tool for the user.
- Real-time asphalt temperature measurement and data monitoring through 3G/4G
- Nondestructive segregation and air void control
- User-friendly interface and database storage
- Website service "Paver Web"
Contractor
- Thermal segregation, voids and other problems will be detected and fixed during the paving process
- Less sanctions
- Improved working methods
- Thermal segregation, voids and other problems will be detected and fixed during the paving process
Road owner
- Good quality pavement
- longer pavement lifetime
- lower maintenance costs
- less repair works and road closures
- Real-time pavement quality assurance
- Road owner can monitor the quality from the "office"
- Self-monitoring and self-reporting data available for in-office use.
- Data will be stored for use later during the guarantee period
