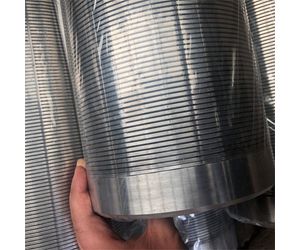

Xinlu - Model Johnson Type -Water Well Wedge Wire Filter Screen
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens Stainless Steel O.D 168mm (6-5/8") Wedge Wire Screen Pipe With 0.5mm Slot Wedge Wire Screen Pipe is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding. OEM service: We can produce products according to the needs of our customers. Material: stainless steel 304, 316L, low carbon steel Diameter: min 32mm, max1500mm Length: up to 6 m Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm Joints: flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.
wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe
Wedge Wire Screen Pipe Advantage:
1. Less Maintenance
The continuous slot design allows for lower entrance veloctiy of the water, reducing encrustation rates.
The slot design also resists plugging and prevents sand from damaging pumps.
2. Pumping Costs
The high open area of the Vee-Wire well screen allows for water to enter the well freely, resulting in minimal drawdown and less energy usage by a pump.
3. Optimal Performance Through
•Screens designed to site-specific yield requirements and aquifer characteristics
• Screen slot opening selected from formation sand sample analysis
• Wire and rod construction to deliver required strength for the specified well depth
• Stainless material selected to maximize corrosion resistance for water chemistry
• Wide variety of fittings to facilitate secure and efficient installation
4. Sand Control
The water well screen is a key component of the sand control system, either as an integral component of the gravel pack, or as a standalone provider of sand control. Patented Vee-Wire technology and welded construction, help to prevent well screen failure by better controlling the sand.
Johnson Wire Water Well Screen Pipe Range:
1. Material: 316L, or according to customized, Stainless steel 304, Non-magnetic SS, Low carbon galvanized,Duplex steel etc.
2. Diameter: 25-2000mm (customized)
3. Slot: min 0.05mm
4. Length: 100-6000mm
5. Flow Type: FITO, FOTI
6. Ends:
Welded rings/Plain beveled ends;
Male/female threaded coupling: API STC, PT NPT, BSP, G;
Flange ;
Closed up,
Open ends etc.
7. Usage: Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Quality assurance: Johnson Wire Water Well Screen Pipe
Every production process has a special person to test to ensure quality
Have professional engineers to check the quality

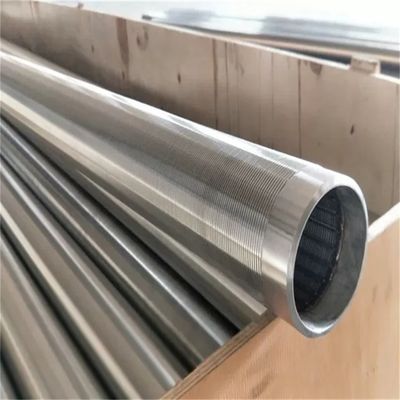

Package: Stainless Steel Wedge Wire Strainer Pipe
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
