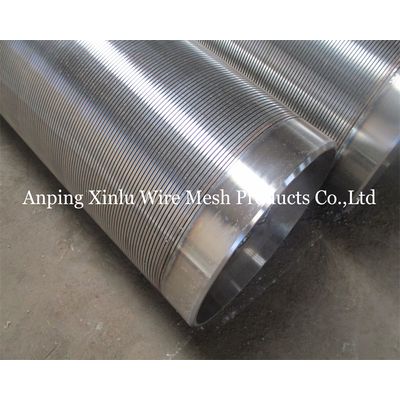

XinLu - Model 273mm x Slot 1.0mm -Wedge Wire Johnson Well Screen Pipe
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens Xinlu’s Wedge Wire Johnson Well Screen Pipe are widely used on drainage pipes in construction sites to filter out sand from the water, and improve the water removal efficiency. Main specs for water well screen Well Screen material: stainless steel, galvanized low-carbon steel, or custom materials Slot opening size: 0.1mm-15mm Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm Length: 2.9m, 5.85m. The maximum length is 6.05m Connection method: beveled, circumferential welded, threaded connection
Xinlu’s water well screens are widely used on drainage pipes in construction sites to filter out sand from the water, and improve the water removal efficiency.
Features
1. High Open Area
More than 25% of open area allows water to seep through the dewatering screen at a reduce speed, while allowing for a lower flow resistance. The enhances the water removal rate, resulting in a more efficient water removal process.
2. Non-clogging Performance
Continuous slots widen inwardly from the screen surface to minimize the chance of sand clogging the slot opening,
3. Excellent Pressure Resistance
The wedge wire screen is welded in a single from with no weld seams on the surface. Precise welding technology gives the screen its strength, making it ideal from high pressure applications
4. Great Sand Barrier
Precisely machined slots keep sand, silt and clay from entering the well, preventing abrasion.
5. Easy Installation
Compared to bridge slot screens or cement pipes, the wedge wire well screen in lightweight and easy to lay on the ground. It is also safe and convenient.
6. Material
The screen is available is galvanized, low-carbon steel, or stainless steel in grades 304 and 316, Premium materials do not retain sand and other impurities, ensuring a non-clogging performance.
Custom well screens
Inform us of your specifications for the water well screen, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.
