Aquas - Version AQWEB Series -SCADA Server Software

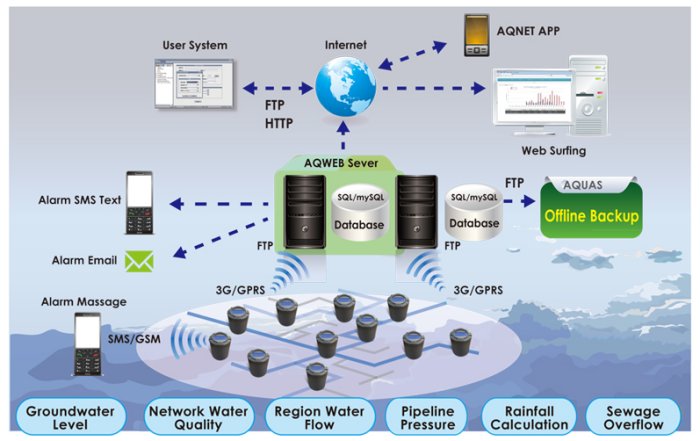

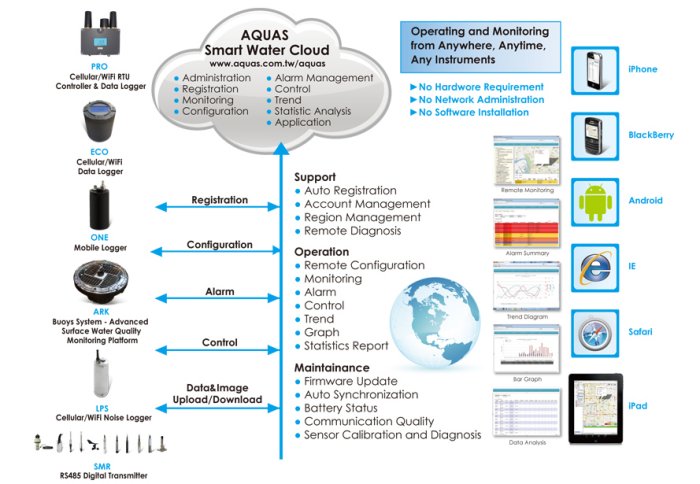

SCADA Software is designed fully compatible with comprehensive range of AQUAS products, consisting of remote configuration, monitoring, control, Google Earth fusion display, flow chart, data table, statistical analysis, transient pressure analysis, alarm summary, trend and report functions. AQWEB provide user-friendly WEB solution to make faster operation, monitoring, diagnostics and analysis across the complete water applications from anytime and anywhere. For highly distributed application structure such as water/wastewater, oil and gas, it is very efficient to use AQWEB as operator stations on the internet.
- 100% Web navigation on all internet platforms including iPhone, iPad, BlackBerry, Android, IE, Safari
- Automatically register and configuration synchronization for all AQUAS instruments
- Ultra fast web browsing within seconds via event-driven communication
- No limit of Internet clients
- High internet security standard
User Friendly Operator Interface
- Graphical tree structure display to view and manage regions and devices
- Real-time data and alarm update within seconds
- Grouping devices into regions according to interest of users
- Google Map display with device data
- Customized unit table for different countries
Advanced Data Analysis
- Advanced data queries, sorting and filtering functions, such as date/time, region of interest, key word, IF_THEN_ELSE, etc.
- Reliable data QA/QC including error data detection and flagging for blank, duplicate, spike values
- Comprehensive historical data analysis including maximums, minimums, average, summary, standard deviation and variance
- Flow volume statistical analysis for water flow balance leakage and minimum night flow leakage
- Transient pressure analysis including location, value, date and time, maximum, minimum, counts and frequency
Remote Configuration
- Configure devices, IO and sensors using graphical tree display
- Automatic registration and synchronization of device ID, serial number, alias, GPS coordinates, region and operation settings
- HH, H, L, LL alarm level configuration

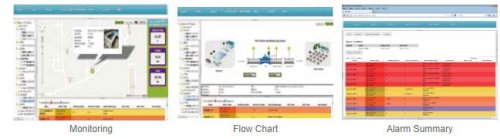

Trend Diagram
- Real-time, historical data and transient pressure
- Up to 16 comparisons of data
- Daily/weekly/monthly/yearly comparison bar graph
- Comparison between different periods and regions
- Statistic analysis of trend data including maximum, minimum, average, standard deviation and variance
Alarm Management
- Real-time color coded alarm levels
- Automatically notify alarm via E-mail and SMS
- Query alarm message by station, interval and region
- Export alarm log into CSV file between specifiedintervals for customizable data analysis
Flexible Report Generation:
- Customizable report layout including tables, trend diagrams, maps,...etc.
- Export log data into CSV file between specified interval
High Internet Security
- User account and privileges management
- Security mechanism for routers, firewall, proxy server, secure socket layers(SSL) and virtual private network(VPN) technologies
User Friendly Operator Interface
- Graphical tree structure display to view and manage regions and devices
- Real-time data and alarm update within seconds
- Grouping devices into regions according to interest of users
- Google Map display with device data
- Customized unit table for different countries
- Customized homepge, overview and flow chart
Auto Data Collection
- Cellular, WiFi, Satelite and RS485/232 communication
- Auto registration and synchronization of device ID, alias, GPS location and setting
System Administration
- User account and priority
- Regions and sites management
Remote Configuration
- Configure devices, IO and sensors using graphical tree display
- Automatic registration and synchronization of device ID, serial number, alias, GPS coordinates, region and operation settings
- HH, H, L, LL alarm level configuration
Alarm Management
- Real-time color coded alarm levels
- Automatically notify alarm via E-mail and SMS
- Query alarm message by station, interval and region
- Export alarm log into Excel file between specified intervals for customizable data analysis
