Envirosoft - Version CEMPact -Real-time Plume Dispersion Estimate Software
FromEnvirosoft Ltd.
CEMPact has been designed to operate in parallel with our Continuous Emission Monitoring System (CEMS) to provide an estimate of the ground level gas concentrations resulting from the release of exhaust gases from one or more stationary sources at a particular location. CEMPact calculates the mass emission (kg/hr) from the raw emissions data, & then uses the wind speed & direction, ambient temperature, stability class, stack gas temperature etc, to calculate the predicted pollution levels over a selected area.
Most popular related searches
continuous emissions monitoring system
emissions monitoring system
continuous emissions monitoring
emissions monitoring
meteorology data
emissions data
stationary source
stack gas
ground-gas
CEMS
- Operates in parallel with our existing emission monitoring system

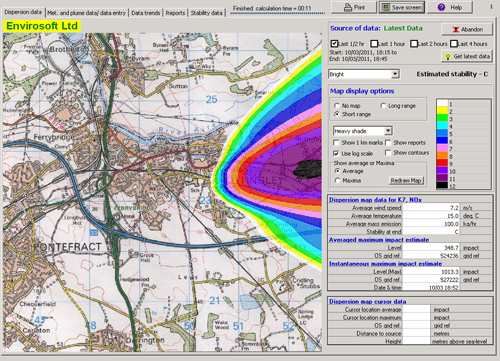

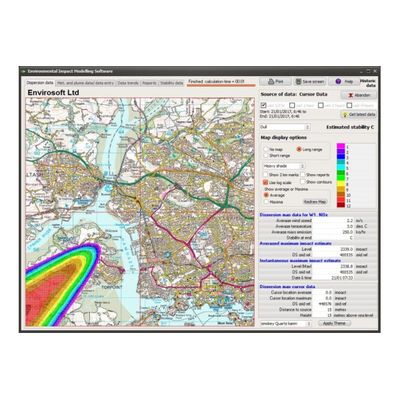

- Predicts plume in real-time and historically
- Automatically updates the prediction from the latest data available
- Manages calls of ‘incidences’ and plots these straight onto the dispersion prediction
- Summarises and graphs meteorological data and plume trajectory
- Trajectory of buoyant plumes assessed according to Brigs estimate for plume rise
- Plume dispersion estimated using Gaussian model treatment in horizontal and in vertical for stable atmospheres
- 3 dimensional local terrain mapping
