Geomar - Version TrackMaker38 -Field Data Acquisition Software

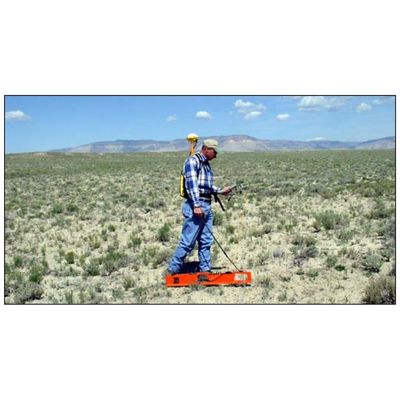

TrackMaker38 software works with virtually any GPS receiver by supporting NMEA messages: GGA, POS, GLL, LLQ, LLK, GGK, and Leica Robotics Total Station TPS1100, and collects EM38 and GPS data into one file simultaneously, while providing a graphical view of the collected GPS positions to better control the survey line direction. A profile view of the collected EM38 data is provided for the improvement of field data quality analysis.

View from NAV38 program running on the Allegro Field PC

The NAV38 also provides a view of any previously collected data files with a Geonics instrument that is supported by the TrackMaker or Multi software and will assists the operator to return to previously collected stations. This allows for the easy and fast location of the last recorded positions, as well as to fill any gaps in the survey coverage, insert additional survey lines with finer spacing in critical areas, or simply repeat survey lines with another instrument.

In addition to acquiring EM38 data the system will convert any Field PC to a stand-alone logger for GPS/DGPS data collection, taking away the need to purchase additional more expensive GPS components.

Display functions:

• Displays locations of logged GPS positions and current location of an operator in real time while in Navigation mode
• Scale of map is user specified (meters or feet) and it scrolls automatically once the end of the screen is reached
• EM38 conductivity or Inphase data is displayed with moving graphic bar and in numeric form, EM38 dipole mode, component, and instrument range also moni
  tored
• Current GPS antenna position in Latitude/Longitude, type of differential corrections (AGPS, DGPS, RTK, Phase), PDOP or other equivalent parameter (depends on NMEA used), number of satellites, and number of GPS positions in the file
• Positions of interpreted anomalies which are entered as an ASCII file allow you to navigate to points of interest

Survey parameters:

• Survey modes supported (Auto, Wheel, or Manual)
• Integration of readings available in Manual mode (up to 100 readings per station)
• Maximum rate of data acquisition is 10 Hz (assuming 1 Hz GPS output)
• New Line, New Station, Comment entry
• Change of scale in Navigation and Profile modes at any time

GPS functions:

• Configuration of logger serial port to accommodate any GPS settings
• GPS output monitoring
• Support for NMEA messages: GGA, GGA/GSA, GLL, POS, LLQ, LLK, GGK, and stream from Leica Robotics Total Station TPS1100
• Option to act as a stand-alone GPS logger, which would allow data to be collected in GXY file format (compatible with any TrackMaker or Multi program)
• Offset for GPS antenna in any direction

Position EM38 readings and create XYZ file based on standalone NAV38 file:

• Apply GPS antenna offset in any direction (as entered in the field with option of correcting this parameter during data processing)
• Selection of specific EM38 component and dipole mode orientation
• Include elevation data with correction for antenna height
• Filters the quality of positioned data based on GPS parameters as PDOP (or equivalent) and the degree of differential corrections
• Field QC parameters (Quality Indicator, number of Satellites and PDOP) are written into the generated XYZ file
• Further enhancement of the collected EM38 readings position is obtained by specifying the GPS Time Gap and GPS Minimum Interval
• Choice of coordinates in generated XYZ file: Geodetic coordinates (Latitude/Longitude in degrees) or UTM coordinates (WGS 1984 datum in meters, feet, or US Survey feet)

Position EM38 readings and create XYZ file based on external GPS file:
(This function is used when real time GPS differential corrections are not available, or when further post processing of GPS data may improve positioning accuracy)

• Apply GPS antenna offset in any direction (as entered in the field with option of correcting this parameter during data processing)
• Selection of specific EM38 components and dipole mode orientation
• Filters the quality of positioned data based on GPS parameters as PDOP (or equivalent) and the degree of differential corrections
• Further enhancement of the collected EM38 readings position is obtained by specifying the GPS Time Gap and GPS Minimum Interval

Miscellaneous:

• Convert NAV38 files to Geonics DAT38 format
• Convert NAV38 files to general format ASCII file
• Convert GXY file to ASCII file containing positions
• Retrieve and position field comments from NAV38 file
• Apply System Time Constant delay in generated XYZ file
• Transfer data file from field computer to PC
• View NAV38 file contents
