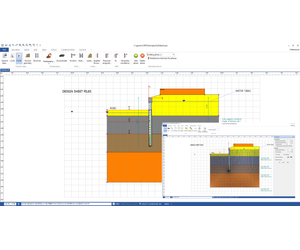

GeoStru - SPW Sheet Pile Walls Design
Sheet walls are relatively thin, vertical structures, embedded in terrain to a depth sufficient to support an uphill embankment/downhill excavation thrust, including water and surcharges. This type of structure can be constructed of driven prefabricated steel pile sections, adjacent, bored cylindrical piles, and reinforced concrete sheet elements usually produced on site. The methods used for analysis / verification are: Limit Equilibrium Method (LEM) and Finite Elements Method (FEM). The methods mentioned are of increasing complexity from both the numerical point of view and for the amount of geotechnical parameters necessary for the calculation.
Sheet pile wall design – SPW : Software for the desing and analysis of sheet pile walls, drilled piles and diaphragm walls.
FEATURES:
Computation performed using Finite Element Method and Limit Equilibrium Method
Multi-layered terrain
Presence of earthquake and ground water
Piles on single row
Piles in quincunx disposition
Micropiles on single row
Micropiles in quincunx disposition
Diafragms with double row reinforcement
Freeform section
Anchors on multiple rows
Loads on embanckment: strip loads, lines of load, uniformly distributed loads. The loads can have an application elevation different from ground elevation
Plotting of flow grid usind finite differences method
Graphical input of stratigraphy, ground water, loads
Analysis per phase and combinations for any phase
Bearing capacity at vertical limit load
Composite sections with metalic profiles
Different sections along the height of the bulkhead
Struts and constraints
Graphical management of any element: layers, ground water, loads, etc.
Calculation of the anchors string courses with a new finite element method
Filtration analysis using the finite differences method for each phase of construction
Reinforcement of the sections per combination and per phase
COMPUTATION:
Computation using Limit Equilibrium Method (LEM) and Finite Element Method (FEM) and also nonlinear analysis
Computation of embedment depth
Verification of an assigned embedment depth
Display of stress diagrams for every phase and combination
Computation of thrusts using the methods of: Coulomb, Rankine, Mononobe & Okabe, Caquot and Kerisel
Computation of tensions in the subsoil, induced by external loads, using the method of Boussinesq
Analysis of the bulkhead during the excavation phase
Semiproject of sections at ultimate limit state, also for mixed sections
Global stability analysis:
Plotting of flow grid usind finite differences method
Methods of: FELLENIUS, BISHOP, JANBU, BELL, SARMA, D.E.M.
The program interfaces with G.F.A.S. (Geotechnical and F.E.M. analysis System)
