EMWorks - Version EMWorks2D -Magnetic and Electric Field 2D Simulation Software

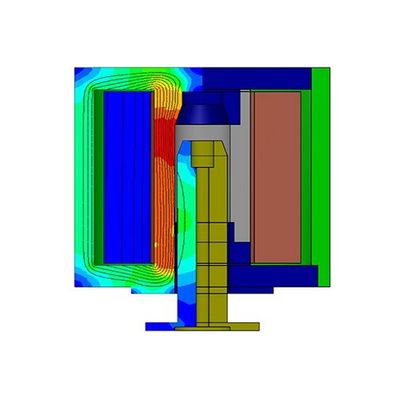

EMWorks2D is a low frequency simulation software that uses FEM to solve magnetic, electric and transient problems. Both planar and axisymmetric invariance geometries can be handled in 2D, which can shorten the design process. It enables you to test and improve your designs in record time. Having an intuitive workflow, EMWorks2D integrates seamlessly into the SOLIDWORKS environment, for a truly effortless and engaging simulation experience. EMWorks2D can be used to predict the performance of transformers, actuators, electric motors, generators, permanent magnet, inductors, magnetic gears, busbars, sensors, bushings, capacitors, insulators, wireless chargers and more…
- EMWorks2D is the only 2D electromagnetic field simulation software fully embedded inside SOLIDWORKS which allows you to maintain the integrity of your product design process.
- EMWorks2D includes a wide range of capabilities and features to meet efficiently your targets and covers your design needs.
- Powerful combination of a leading CAD tool and accurate, easy to use electromagnetic field simulator inside the same environment that allows a smooth incorporation of your electromagnetic simulation into your product development process.
- EMWorks2D is more than product, you can leverage our highly qualified support team to achieve your goal in short time and less cost.
2D Electromagnetic field simulation: EMWorks2D allows you to accurately solve both electric and magnetic problems. It includes these solvers: electrostatic, magnetostatic and transient solver.
User-friendly and intuitive user interface: EMWorks2D is an easy-to-use program with intuitive workflow helps you to achieve your objectives effectively. It follows the same philosophy of SOLIDWORKS workflow, which makes the learning curve short.
Parametric simulation: EMWorks2D allows you to study the effects of the geometric or/and simulation parameters changes on the design. Parametric simulation is based on user-defined scenarios formed by single or multi parameters.
Mechanical motion coupling: MWorks2D allows to couple a transient magnetic study to mechanical motion. Thus, EMWorks2D can be used as a motor design software and can be used to virtually study critical electric motor design parameters including: cogging torque, back emf, short circuit response, load torque, current and voltage results, core loss, eddy current loss, winding loss, inductance profile, resistance, flux linkage and more.
