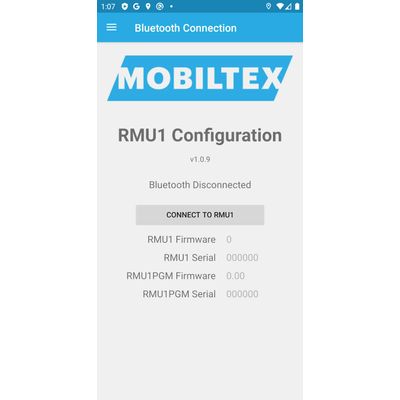

Mobiltex - Version 1.1.3 -RMU1 Configuration Apps
This app is for configuring the corTalk® RMU1 (Remote Monitoring Unit 1) with a Bluetooth configuration interface. Both the RMU1PGM or RMU123PGM with RMU1ADP are compatible. They both function as a complete RMU1 programming interface but only requires the Bluetooth connection of your phone to use.
*** Requires a corTalk® RMU1PGM or RMU123PGM and RMU1 to use. ***
Contact us at `sales.rmu1@mobiltex.com` to purchase.
The RMU1 is an ideal solution for automated remote monitoring of CP coupons and critical bonds terminated in an industry standard 3" CP test station. It is equipped with an internal interruption relay and multiple analog measurement channels capable of accurately measuring all required AC & DC parameters for single coupons, dual coupons, and structure bond applications. This app allows access to diagnostic information on the RMU1 and setting up the configuration to meet the customer`s needs. The Bluetooth configuration interface do not allow for datalogger extraction.
The app allows full configuration of the RMU1 including
- slot measurement types
- limits
- slot scaling and offset
- depolarization
- location
Other features include the
- updating firmware
- viewing of readings and their limits
- detailed status screen for troubleshooting
- integrated manual
- wiring diagrams for each measurement type
The RMU1PGM and RMU123PGM are always in a Bluetooth pairing mode and requires a pairing code entered on the app. The pairing code (default=123456) can be found and changed with the app. Once paired, the iOS device can reconnect without needing to re-enter the code.
Updated Firmware:
- RMU1 G1 v1.23
- RMU1 G2/G3 v1.23
- RMU1 G4 v1.23
- RMU1-SUB G4 v1.23
