Contactless Flow Measurement solutions for Wastewater Treatment Plant - Intake Area - Water and Wastewater - Water Treatment

SHARE

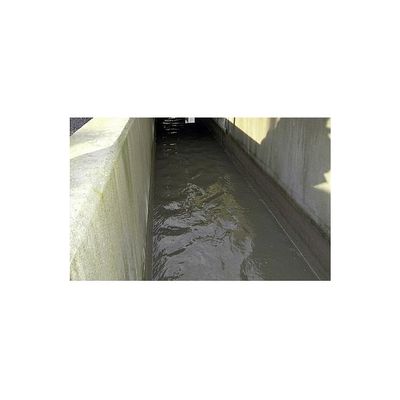

Application: Concrete channel, width 1.2 m. Part filled. Measurement point upstream of screen and grit trap. High sedimentation loads.

Most popular related searches

wastewater flow monitoring

wastewater treatment monitoring

wastewater treatment plant

radar measurement system

flow monitoring system

wastewater treatment

water treatment

flow monitoring

Intake measurement as control measure to avoid WWTP flood
Contactless measurement system due to partially high pollution loads
Easy installation
No Ex required (open, aerated channel)

No sensors can be installed on the channel botton or in floats due to high pollution loads or foam on the surface.
The surfaec radar measurement system Type NivuFlow 550 has been used since the measurement is for control purposes only without the need for certification.

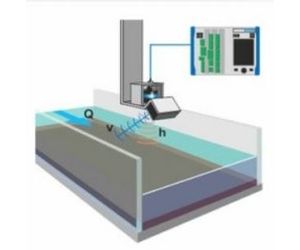

The system measures the velocity of the surface waves and calculates the current flow rate from this velocity, the measured level and the defined rectangular channel shape.

Contactless
Insensitive to soiling
Easy to install
