Environmental solutions for the iron and steel industry - Metal

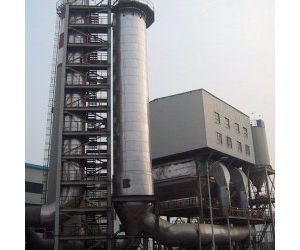

The evaporative gas cooling and conditioning system uses a finely atomized water spray to cool EAF, BOF off-gases from over 2,400°F (1,315°C) to as low as 240°F (115°C), protecting ductwork and downstream air pollution control equipment from high temperature and sparks, while providing rapid cooling for dioxin and furan control. By optimizing humidity levels, it helps electrostatic precipitators because the water spray completely evaporates while cooling the gases. There is no free water and no troublesome deposits in ducts, towers or hoppers. Rugged Turbotak™ atomizing nozzles are ideally suited to the harsh conditions in steelmaking, while still producing ultra-fine sprays with precise control of dropsize and spray coverage.
The system can be applied to EAF/BOF off-gas cooling, castor sprays, spark arrest, sintering and hot-rolling applications.
Dürr MEGTEC also provides upgrades or retrofits to existing systems. Our system can be installed in the hot quench lower or BOF riser duct, and in existing ductwork, whether vertical or horizontal.
