Flow Metering in Channel with Dry Weather Flume - Water and Wastewater

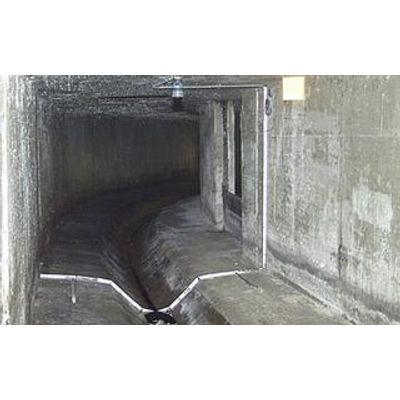

Application: Segmented rectangular channel, 3 m width. Part filled. Rectangular channel made of concrete. Channel with dry weather flume and side space.

Definition Of Task

  • Accurate detection of dry weather discharge and combined water discharge


  • A measurement system Type OCM Pro has been used.
  • To detect low volumes, the first sensor has been installed in the dry weather flume. Sensors 2 and 3 have been installed left and right of the dry weather flume on the side step. In combination with sensor 1 they detect flow velocities at higher levels or the discharge of combined water.


  • Straightforward programming due to preset channel shapes.
  • Utilisation of 2 analog outputs using appropriate scales for dry weather and rainy weather and hence high resolution of readings.
