Independent Level Measurement Solution ...

Independent Level Measurement Solution for Water Supply - Groundwater - Soil and Groundwater

SHARE

Application: Measuring tube with 150 mm diameter. No power supply available on site.

Most popular related searches

level monitoring

process control system

groundwater level monitoring

level monitoring system

level monitoring logger

groundwater level

level data logger

groundwater monitoring

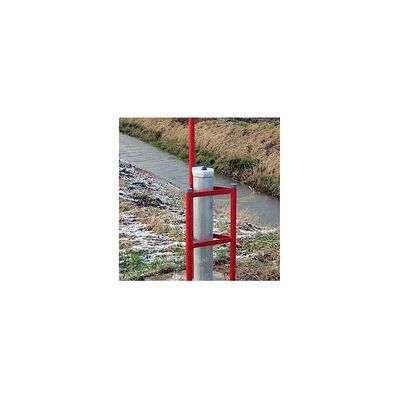

Groundwater level measurement at multiple level measurement spots
Data logger installed in measuring tube
Stable and reliable data transmission
Extremely long lifetime without the need to replace the battery
Forwarding of measurement data to higher control system

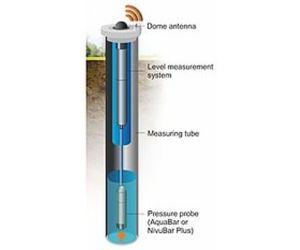

A battery-powered GPRS level data collector with a directly connected pressure probe Type AquaBar has been used.
The very powerful battery and a very short measurement duration of less than 1 sec. per measurement allow a battery life of approx. 10 years.
Thanks to very compact dimensions and the high protection degree it was possible to place the data logger directly within the measuring tube.
Effective data compression as well as the special transmission method ensure uninterrupted transmission of readings. The connection to the customer process control system is carried out using the NIVUS data portal "Device to Web".
