Industry - Surface mining Solution for Mine Water Flow Measurement - Mining
FromNIVUS GmbH

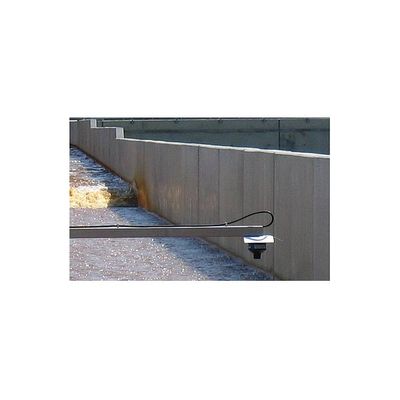

Application: Rectangular concrete channel 2.5 x 1.5 m (w x h). Part filled. Pit water purification system of a brown coal surface mining plant. Medium with high solid contents (iron ochre).
Most popular related searches
flow monitoring
surface mining
water level monitoring system
water level monitoring
level monitoring system
water purification system
water flow monitoring
level monitoring
water monitoring
venturi flume
- Continuous volume measurement for subject-to-control hydraulic plant efficiency
- Iron oxide (ochre) contained in the pit water shall not influence the measurement system
- Redundant water level measurement
- The planned expensive solution using a Venturi flume has been replaced by the cost-efficient and more accurate NivuFlow 750 measurement system.

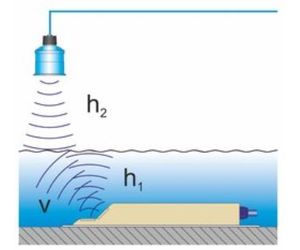

- Apart from flow measurement, the application has been equipped with 2 different level measurements to ensure redundancy. An air-ultrasonic as well as a water-ultrasonic sensor have been used.
- Higher accuracy and measurement dynamics than the planned Venturi measurement
- Higher flow velocities and less sedimentation than Venturi measurement with backwater
- Construction costs reduced by 60%
