Synchrotron Deformable Mirror

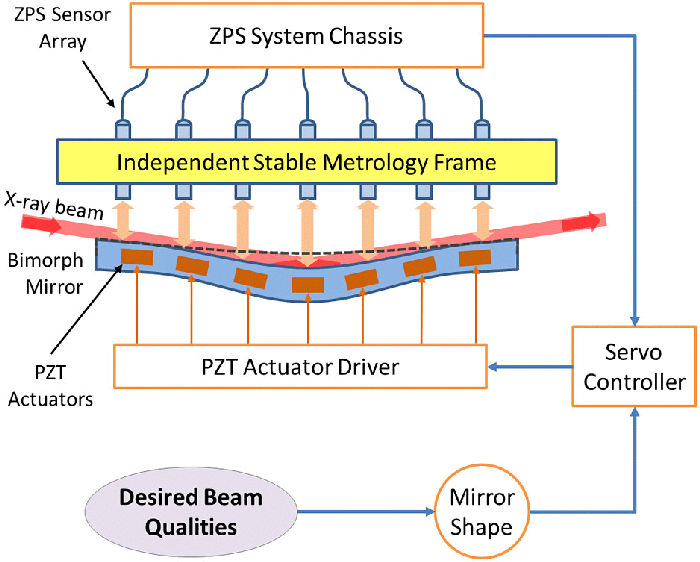

ZPS™ sensors can be deployed along the length of the mirror to measure the curvature or complex shape of the mirror. In the case of hard xray beamlines, the ZPS system can directly measure the part of the mirror that interacts with the beam.

ZPS sensors have been exposed to x-ray radiation have shown no signs of performance degradation to date. ZYGO can provide sensors with Kapton jacketing for x-ray resistance and vacuum compatibility down to 10^-9 torr (10^-7 Pa).
