Investigation of precipitation volumes for billing purposes within a water association consisting of several communities. Setup of 7 precipitation measurement spots to detect stormwater volumes. Transmission of detected data to central access point via GPRS desired.
Most popular related searches
precipitation monitoring
rain gauge
rain gauging
water monitoring
data logger
transmission data
precipitation detection
water testing
GPRS data logger
heated rain gauge
Definition of tasks
- Four rain gauges have been available for the detection of precipitation volumes so far which however had to be read out manually. The data then had to be put together manually as well
- For more accurate detection of precipitation distribution 3 additional measurement spots are to be set up
Solution

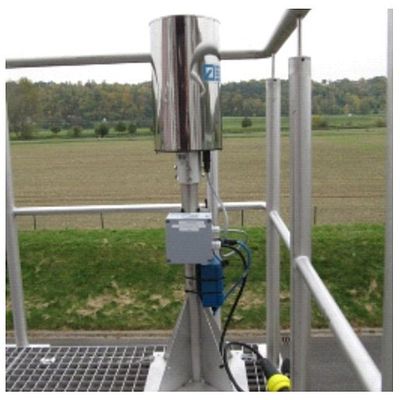

- Three new rain gauges have been installed addtionally. Then each of the 7 measurement stations has been equipped with a NivuLog Easy unit for data storage and GPRS transmission.
- The data loggers are supplied by using the power supply of the rain gauge heating.

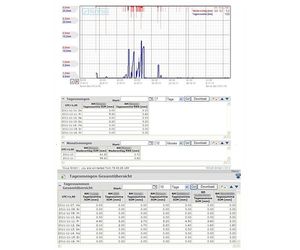

- The "Device-to-Web" data portal independently creates all required statistics as daily and monthly values and gathers the data in a common spreadsheet. This significantly facilitates overall evaluation.
- The communities connected additionally get separate access to their readings so that the previously required manual data exchange is
no longer necessary.
