Solutions for drinking water treatments industry - Water and Wastewater - Drinking Water
Design, implementation and operation of water purification systems to remove salts and pollutants from the surface, underground, brackish and seawater.
Depending on the degree of purity required, Salher designs and manufactures pre-mounted, ready to operate (Plug & Play), modular, expandable and containerizable water purification and disinfection systems.
- Drinking water suitable for human consumption.
- Food industry.
- Pharmaceutical industry.
- Cosmetic industry.
- Energy sector.
- Hospital sector.
- Chemical industry.

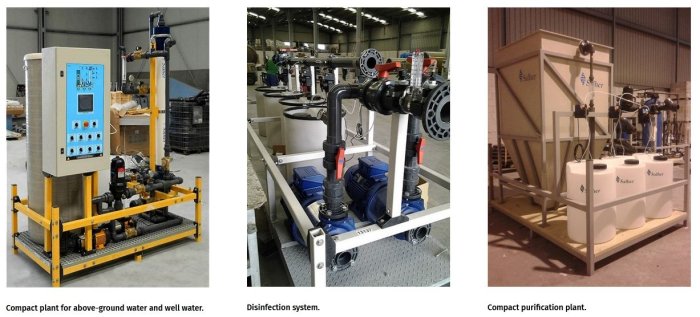

Salher compact water treatment plants or WPP provide drinking water for populations up to 15.000 inhabitants everywhere, including remote areas.
Salher develops optimized treatment lines for flows up to 2400m³/day:
- Small and medium populations.
- Continuous emergency situation.
- Immediate emergency situation.
Designed to be placed in container or compact structures to optimize the available space, these drinking water treatment plants have a modular design and are easy expandable if needed.
Salher includes auxiliary equipment to provide a complete solution and guarantee a total efficiency of the plant:
- GPRF water storage tanks up to 150.000 liters for raw water, treated water and rejected water.
- Container or transport shed prepared for extreme environment.
- High pressure pumps for reliable supply of treated water.
Salher designs reverse osmosis (RO) plants to treat brackish and seawater whose salt concentration exceeds 20 meq/l (1000 μS/cm).
Reverse osmosis treatment plants remove:
- Ions (efficiency >99%).
- Nitrates, ammonium (80-90%).
- Boron (50-60%).
- Bacteria and pathogens virus.
For salinity levels lower than 20 meq/l, such as surface and well water, Salher recommends ion exchange technology.

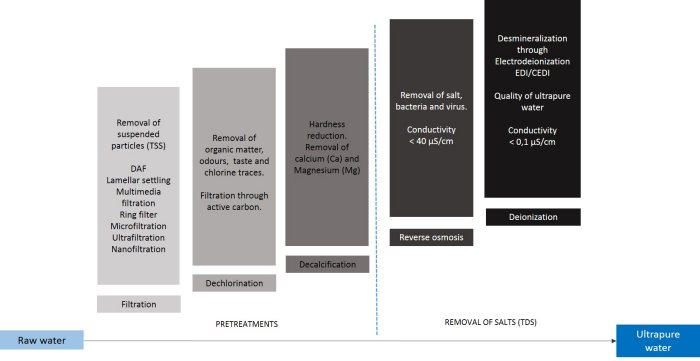

We recommend installing pretreatment equipment to remove suspended solids, algae, sediments, etc. A right pretreatment allows optimizing the WPP design, maximizes its useful life and reduces the operation costs (capex).
Quick clarification and high removal efficiency of suspended solids. Very efficient separation of grease and oils from water.
Treatment for water with high turbidity through compact equipment and with large lamellar surface.
Filtration of several types and with different filtration ranges for a complete removal of suspended solids and waste which affect the efficiency of RO membrane.
- Disc filter.
- Multimedia filter.
Chlorine reducer treatment (Dechlorination).
Physical removal by means of activated carbon and/or chemical filters through sodium bisulfite, to prevent membranes from being damaged by traces of chlorine.
Effective to prevent the precipitation of the calcium phosphate and the calcium carbonate on the RO membranes.
Production of the electrical panel baords, automaton programming (PLC) and supervision through SCADA of the treatment line efficiency.
For further information, please consult “Water treatment plant control panel”.
All the compact water purification plants Salher have the required cleaning systems for a complete automation of the plant as well as the lowest impact on the equipment properties (filters and membranes) and pressure operation over time.
When the water arriving to the membranes contains substances such as metallic oxide, aluminium silicate, organic matter, colloidal particles, microorganisms and other less common pollutants, dirtiness occurs. The specific washing of the membranes maintains its properties to avoid the load loss and the flow decrease during its useful life.
