Solutions for water treatment in the dairy industry - Food and Beverage

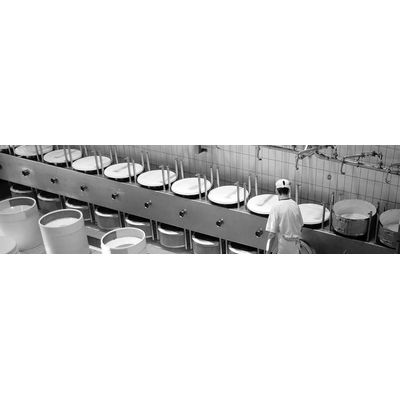

The dairy industry is dedicated to the production of milk and processing of by-products such as yoghurts, cheeses, butter, cream … This sector generates a large quantity of process water highly contaminated with organic matter, nitrogen and phosphorus, detergents, acidity, oils and greases. The range of water treatment solutions Salher offers endless options to address any quality and innovation challenge.
Wastewater are generated through:
- Manufacturing process,
- Cleaning of tanks, equipment and installations, surfaces (floors, walls), leaks and spills.
- Regular drainage operations. These operations represent the largest part of water consumption to guarantee the required hygiene and quality conditions.
- Sanitary uses.
There are several treatment solutions depending on the defined strategy, the type of project (wastewater treatment, reuse) and the discharge of treated water.
Depending on the flow, the pumping station can be prefabricated or a civil engineering structure. Salher tanks are manufactured in GFRP according to the Filament Winding method and have the following advantages:
- Complete waterproofness and corrosion resistance,
- High isothermal resistance to temperature variations,
- High chemical and mechanical resistance to enable underground installation in circumstances such as deepness, water-table, etc.,
- Light equipment,
- Long-term durability,
- Flexibility which enables multiple shapes and designs in accordance with the requirements of the project or works.

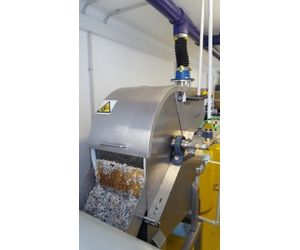

The installation of a screening system for coarse, fine and non-putrescible solids is necessary. Salher recommends a rotary drum sieve with automatic cleaning system and a mesh lower than 3mm, reference TA-RO Salher brand.
- Equalization tank to buffer the peaks flows of the plant, homogenize the loads, control and correct the pH, and laminate the effluent.

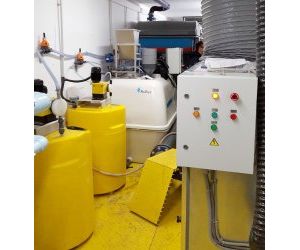

- Dissolved air flotation unit, a physical-chemical treatment that separates suspended solids, greases and organic matter by flotation through micro-bubbles. The yields of this process can be greatly improved with the addition of coagulants and flocculants, prepared in the UAP (automatic polyelectrolyte preparation plant).
- Activated sludge treatment (aerobic) with nitrification-denitrification and clarification process.
- Treatment through moving bed biofilm reactor or MBBR system (aerobic). More compact and flexible technology; stable for the removal of BOD/COD and nitrogen. The addition of iron salts (iron chloride) is necessary to chemically remove phosphorus.
Once the treated water is ready for discharge, we recommend to reduce the maximum volume of sludge. To this end, several treatments are available:
- Stabilization
- Thickening
- Dehydration
6. Desodorization.
This process eliminates odors through active carbon and ionization.
Salher meets the demands of all its customers, whatever the destination of the plant is, thanks to its containerized solutions. Salher compact and containerized plants can treat flows up to 150 m³/day.
One of the main advantages of this solution is the reduced space in which the treatment and control equipment are housed, allowing a comfortable handling and supervision by the technical staff of the plant. Salher containers are thermally insulated and perfectly conditioned to the climate of the implantation site.
Its transport and installation are fast and easy.
- Studies and evaluations,
- Civil engineering and design,
- Water engineering and design,
- Commissioning assistance and in situ technical support,
- Electronics, instrumentation, automation and remote control of the plants,
- Technical support for operation and control,
- Multilingual documentation.
