ToughSonic® Ultrasonic Sensors for Optimized Tank Level Monitoring - Water and Wastewater - Water Monitoring and Testing

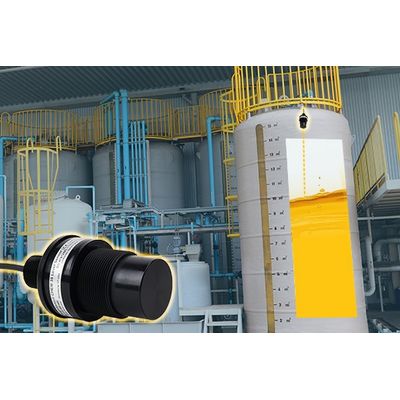

ToughSonic® ultrasonic sensors offer cost-effective, continuous level monitoring and measurements for small, mid-size and large tanks. They are installed at the top of the tank to provide non-contact liquid and/or chemical measurements. Senix ultrasonics are easy to install into standard fittings, adaptable to a wide variety of liquids and liquid environments, and can be used both indoors and out. ToughSonics are compatible with local network integration for convenient on-site monitoring or BinCloud® software for remote and multi-site monitoring.
- Measuring Ingredient Levels in Tanks
- Agriculture Irrigation and Fertilizers
- General Industrial Automation
- Inventory Management
- Batch Control
- Low- and High-Level Alarms
- Emptying, Filling, or Maintaining Levels
- Proactive Scheduling of Orders, Deliveries, and Pickups
- Disposal of Waste Liquids
- Pump and Valve Control
ToughSonic general purpose sensors are built with rugged construction, corrosion-resistant materials, a wide operating range and a liquid-tight IP68 ingress rating. This intentional design makes measuring liquids a breeze.
Products are offered in a variety of distance ranges to accommodate tanks ranging from 6 in (15 cm) to 50 feet (15.2 m). Choose from mounting threads and additional accessories. All sensors include analog, switch, and data interfaces with compatible setup software.
Senix’s chemical sensors expand the range of environments in which ToughSonics thrive. Housings are molded from polyvinylidene fluoride (PVDF), or Kynar®, a highly non-reactive thermoplastic that resists solvents, acids and hydrocarbons. Smart electronics are fully sealed to ensure their effectiveness and longevity.
ToughSonic-200 sensors also include top and bottom mounting threads and a potted-in, PUR-jacketed, UV-resistant cable. Review the Kynar compatibility chart HERE to verify chemicals and operating temperatures.

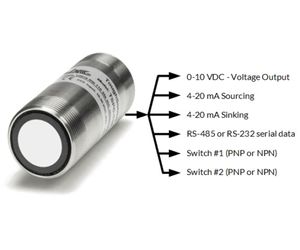

ToughSonic sensors include multiple analog and switch outputs compatible with most industrial equipment, plus a serial data communications interface for setup via SensorView™ software or user applications.
Outputs are user-configured with SensorView software. Setup values are permanently stored in each sensor. The data can be saved and duplicated in other sensors without need for re-calibration.
Analog outputs can be proportional to tank level or volume. Switch outputs can control pumps and valves, or be configured to indicate low or high alarm conditions.
