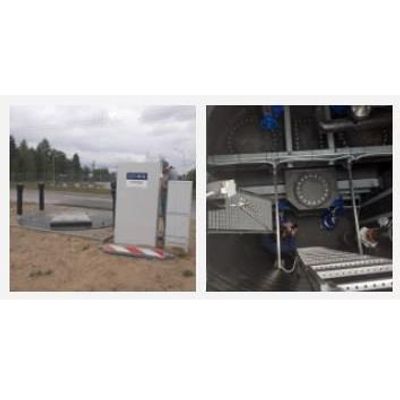

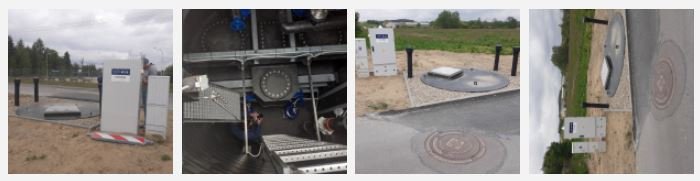

Project - Dry well pumping station for investment in Pila

Project Description

Construction of a water supply network and sanitary sewage system as well as sanitary sewage system extensions on the streets: Kamienna and Granitowa in Pila.

Dry well pumping stations with a 2-pump system with a capacity of up to 200 m3 / h. The capacity of the pumping station 14-33 l / s.

Retention module with dimensions:

• module diameter = 2.60m
• Module height = 1.63m
• The pumping station is equipped with:
• Chamber - made of HDPE. There is a hole in the cover equipped with a cast iron manhole cover
• Retention module - entirely made of HDPE. There are inspection hatches in the upper part of the module, enabling interior inspection, service, cleaning, while the pumping station is in operation.
• Inlet and outlet piping with a diameter of 100 mm
• 2-channel solids separators are located inside the retention module
• Pneumatic system consisting of a compressor, air preparation station and pneumatic valves
• Pumps (2 pieces) - mounted vertically outside the retention module. Pump protection degree IP 68. Pump operation - alternating.
