Project - Dry well pumping station with a 3-pump system in Glowno

Project Description

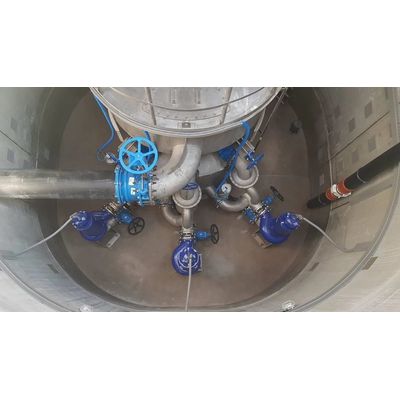

Dry well pumping station with a 3-pump system with a capacity of Q = 310 m3 / h.

Retention module with dimensions:

• module diameter = 2.80m
• module height = 3.20m

The pumping station is equipped with, among others in:

• inlet-pressure piping with a diameter of 250mm
• 2-channel solids separators are located outside the retention module (3 pieces)
• a pneumatic system consisting of a compressor, air preparation station and 3 pneumatic valves with a diameter of DN200

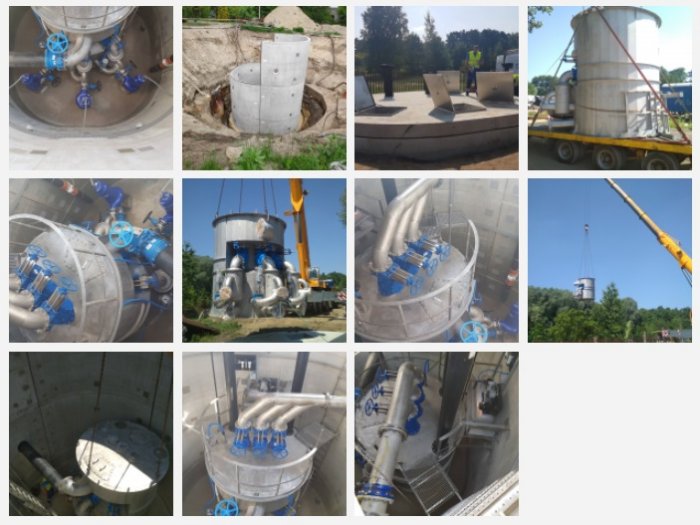

The pumping station was installed in the DZB tank with the following parameters:

• internal diameter: 5.50m
• Height = 7.25m
