Amarillo Gear Company LLC products

Amarillo Gear manufactures the future in air cooled condenser gearboxes today with the new Quantum Series. With 3 patents, these air cooled condenser gearboxes truly bring innovation and reliability to an application that has historically had an array of problems.

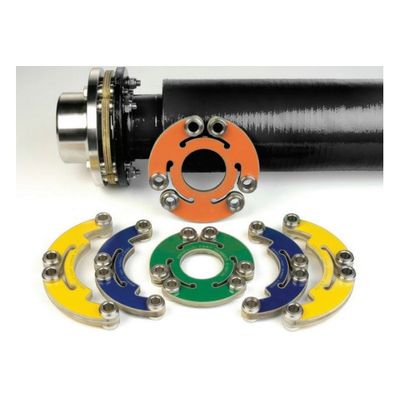

The Amarillo Composite Drive Shaft is the perfect complement to Amarillo Gear Drives. Each drive shaft connects the electric motor to the gearbox input shaft, thereby transmitting torque to rotate the cooling fan. Amarillo Composite Drive Shafts are custom manufactured and engineered for specific applications to achieve optimum performance. Our composite drive shafts will accommodate spans from 2 feet (0.61 meters) in small HVAC cooling towers, to over 20 feet (+6.1 meters) in large field erected towers and heat exchangers.

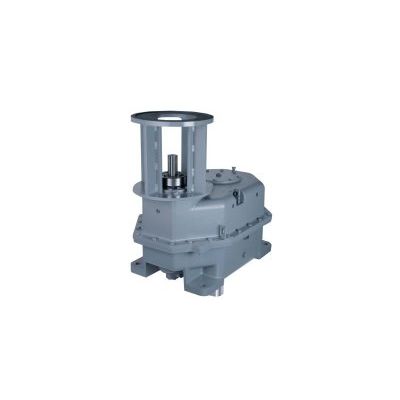

The gear drives Amarillo Gear Company produces for dry cooling systems and steam condensers reflect a long history of quality workmanship and reliability. Amarillo Gear has been designing and manufacturing right angle drives since 1934, and the commitment to excellence continues today. One example of this commitment is the availability of complete noise and vibration testing, with all data taken under full horsepower loading up to 500 hp.

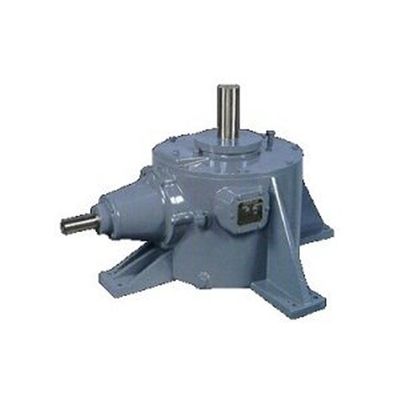

The "A" Series right angle gear drives for cooling towers from AMARILLO GEAR are designed as direct replacements for the Marley® Cooling Tower line of right angle drives. Since there are no differences in the critical mounting dimensions, the "A" Series will make gear drive replacements easy. Gear housing foot patterns are identical, eliminating expensive tower gear drive support modifications. The input shaft diameters and keyways are the same, so existing couplings and drive shafts do not have to be replaced. All service ports are also easily accessible. Reduction ratios are within ± 2% of the Marley® reduction ratios, eliminating the need to make costly fan pitch adjustments.

Amarillo Gear Company’s cooling tower drives have a long history of quality workmanship and reliability. An example of our commitment to excellence is the availability of complete noise and vibration testing, with all data taken under full horsepower loading up to 500 hp. Design features and ratings are in accordance with or exceed the minimum requirements of AGMA (American Gear Manufacturers Association) and CTI (Cooling Technology Institute) standards.

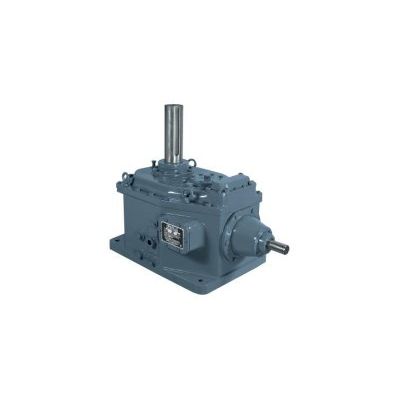

The drives Amarillo Gear Company LLC produces for cooling tower and air fin heat exchanger service reflect a long history of quality workmanship and reliability. Amarillo Gear has been designing and manufacturing right angle drives since 1934, and the commitment to excellence continues today. One example of this commitment is the availability of complete noise and vibration testing, with all data taken under full horsepower loading up to 500 hp.

Amarillo Gear Company continues its leadership position in the design and manufacturing of gear drives and composite drive shafts for cooling tower service. The Amarillo Composite Drive Shaft is the perfect complement to the Amarillo Right Angle Gear Drive. Each drive shaft connects the electric motor to the gearbox input shaft, thereby transmitting torque to rotate the cooling tower fan. Each drive shaft is specifically manufactured and engineered for the specific application to achieve optimum performance. The Amarillo Composite Drive Shaft will accommodate spans ranging from 2 feet in small HVAC towers, to over 20` in large field erected towers.

Removes particulate, water, varnish. Continuous, unattended filtration. Filter while gearbox is in operation. Oil sampling port. Hour meter. Oil temperature gauge. Powered oil changes. Filters new oil prior to entering gearbox. Portable on tower and throughout plant. Flow restriction indicator on filter housing.

Amarillo Gear Company LLC reserves the right to make design modifications to our gear drives that may change the given dimensions. The dimensions shown in this document may not exactly reflect the dimensions of gear drives currently being offered. Request a certified dimension print for construction use.

Amarillo Gear Company LLC reserves the right to make design modifications to our gear drives that may change the given dimensions. The dimensions shown in this document may not exactly reflect the dimensions of gear drives currently being offered. Request a certified dimension print for construction use.
