Amcon Inc. products

This model maintains high dewatering performance over an extended period without replacing consumable parts, thereby reducing the cost of sludge treatment. It can also handle sludge containing highly fibrous and inorganic materials.

A thickener is mounted inside the flocculation tank (TFU), significantly improving the throughput. Equipped with the control function (VAS: VOLUTE™ Antilock System) which enables the continuous stable operation, this series prevents overload stoppage, which may reduce hourly throughput.

In addition to a simple structure with basic VOLUTE™ features such as power-saving, water-saving, and low noise, this model has a control function (VAS: VOLUTE Antilock System) that supports the continuous stable operation. The machine prevents overload stoppage, which may reduce an hourly throughput. It is easy to operate having the same control system as higher-end models adopted.

Equipped with a tank for temporarily storing of sludge before it is dewatered (sludge conditioning tank). Dramatically increases the efficiency of sludge treatment with a high solid capture rate of over 95%.

Everything necessary for mobile sludge treatment in one package. The initial cost can be kept lower than installing sludge treatment systems at multiple locations. Equipment layout can also be arranged.

Mechanically thicken the sludge with a concentration of 1% or less to 4 to 6%. The model will constantly produce stable thickened sludge, which is difficult to obtain with gravity thickening. Installing a thickener in the preceding stage of an existing belt press improves the capacity of the dewatering machine. The thickener is effective in sludge volume reduction while the final form of sludge being still semi-liquid and pumpable.

This system can convert waste activated sludge and chemical sludge into dried sludge with a water content of 10 to 40%, reducing the amount of the waste sludge. High thermal efficiency is achieved with the direct contact of the the dewatered cake to the heat source. The unique double layered drum structure ensures a sufficient drying area while providing a compact design.

This is a drum-type dryer that performs drying by a steam-heated drum. This machine can convert waste activated sludge and chemical sludge into dried sludge with a water content of 10 to 40%, reducing the amount of waste sludge. * The K series is a product of KANKYO SETSUBI Co., Ltd.

This machine automatically dissolves polymer used in sludge dewatering presses and all other wastewater treatment systems into a specified dilution rate. Significant labor savings can be achieved by automation of the dissolving process.

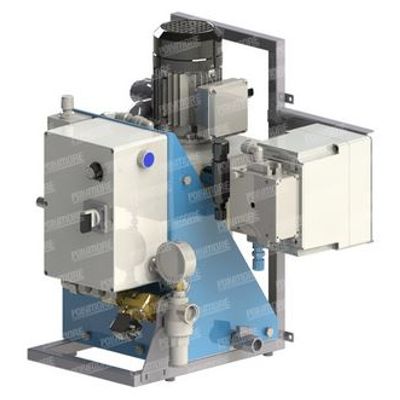

Polymore which is manufactured by Swedish company POLYMORE, is a in-line mixing type, automatic liquid polymer make-up system that is widely used in Europe.
