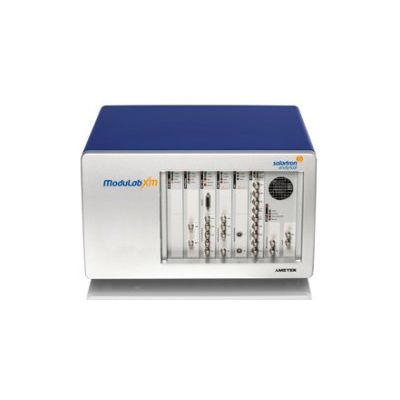

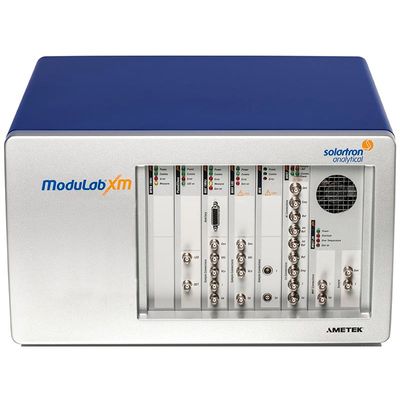

ModuLab XM has modularity at the center of its design. Each system can be configured for electrochemical, materials, and photoelectrochemistry measurements. At the core of each of these is the Frequency Response Analyzer. The accuracy from design to calibration is at the heart of Solartron`s success and reputation for impedance measurements. Fast ADCs (40MHz) allow specialized techniques, such as Harmonic Analysis and Intermodulation at high sample rate to be performed at all frequencies; unlike sub-sampling techniques using slower ADCs common to other designs that are subject to aliasing errors. Harmonic Analysis is typically used to investigate cell non-linearity with application in fast charge / discharge of energy devices.

ModuLab XM has modularity at the center of its design. Each system can be configured for electrochemical, materials, and photoelectro chemistry measurements. At the core of each of these is the Frequency Response Analyzer. The accuracy from design to calibration is at the heart of Solartron`s success and reputation for impedance measurements. Fast ADCs (40MHz) allow specialized techniques, such as Harmonic Analysis and Intermodulation at high sample rate to be performed at all frequencies; unlike sub-sampling techniques using slower ADCs common to other designs that are subject to aliasing errors. Harmonic Analysis is typically used to investigate cell non-linearity with application in fast charge / discharge of energy devices.

Widest impedance range - µohms to >100 Tohms. Instant switching between time Domain (IV, fast pulse) and AC (C-V, impedance, Mott-Schottky) measurements without changing sample connections. Low frequency to 10 µHz for degradation, trap state and material purity studies. Plug and Play options include – Femto and Sample/Reference modes (for dielectric/insulators). XM-Studio software is included with all XM Series systems. ModuLab XM MTS impedance accuracy contour plot highlights Solartron`s best in class measurement performance.

The system, based upon Solartron Analytical`s world-leading experience in transfer function measurements, offers a high-quality measurement platform for characterizing a range of photoelectrochemical devices such as DSSC`s, Perovskite cells, and Photoanodes," noted Professor Laurie Peter, world leading expert, University of Bath, UK. Professor Peter acted as scientific advisor during the development of the ModuLab PhotoEchem system and helped ensure the system met the requirements of the most demanding photovoltaic researchers in the market today.

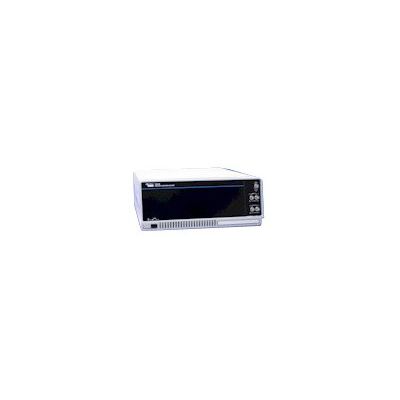

Most referenced, most cited, most popular Impedance Analyzer available. Wide frequency range from 32 MHz to 10 µHz (more that 12 decades) for solid state materials. Impedance range from 100 mOhm to 100 TOhm, with the 1296A Dielectric Interface. Able to perform DC potentiotstatic and galvanostatic experiments with 1287A Electrochemical Interface. Controlled by SMaRT software and optionally with ZPLOT. 1260A Impedance Analyzer accuracy contour plot highlights Solartron`s best in class measurement performance.

Wide frequency range from 1 MHz to 10 µHz. Sine wave Voltage generator to 3 V RMS and ± 40.95 V DC. Two (2) Voltage measurement channels to 5 V peak. Able to perform DC potentiotstatic and galvanostatic experiments with 1287A Electrochemical Interface. Impedance range from 100 mOhm to 100 TOhm, with the 1296A Dielectric Interface.

The 1252A Frequency Response Analyzer is one of a range of instruments that will meet your needs today and in the future. Using the single sine technique the 1252A provides precise measurement of gain and phase between any two points in a system. This fully digital technique is used to assess the performance of both simple and complex systems - electrochemical, materials, electrotronics, mechanical, and acoustic.

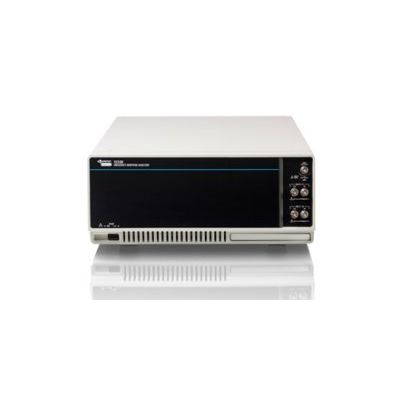

Wide frequency range from 65 kHz to 10 µHz. Sine, square, triangle Voltage generator up to 10 V RMS and ± 10.22 V DC. Two (2) simultaneous Voltage measurement channels to 500 V peak. Harmonic Analysis capable. Impedance range from 100 mOhm to 100 TOhm, with the 1296A Dielectric Interface. Able to perform DC potentiotstatic and galvanostatic experiments with 1287A Electrochemical Interface.

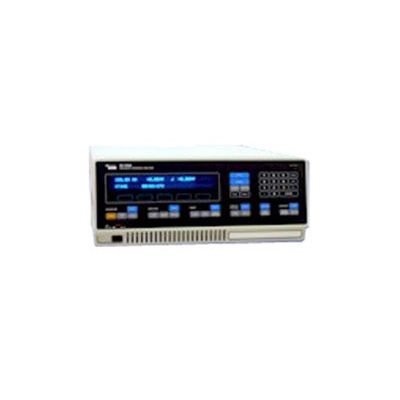

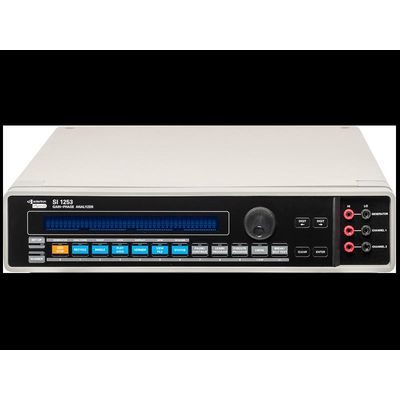

Frequency range from 20 kHz to 10 µHz. Sine, square, triangle Voltage generator up to 10 V RMS and ± 10.22 V DC. Two (2) multiplexed Voltage measurement channels to 500 V peak. Transfer Function Accuracy to 1%, 1°. Able to perform DC potentiotstatic and galvanostatic experiments with 1287A Electrochemical Interface. Impedance range from 100 mOhm to 100 TOhm, with the 1296A Dielectric Interface.
