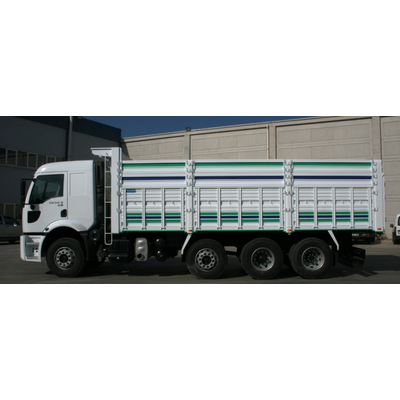

This type of tipper is suitable for the transportation of the light excavation material and pallets. The dimensions of the tipper body depends on the vehicle chassis measurements. For different applications, please fill the request form. The recommended volumes for the 6x4 chassis vehicles are 14 m3, 16 m3, 18 m3 and 20 m3. The recommended volumes for the 8x4 chassis vehicles are 20 m3, 22 m3, 24 m3 and 26 m3.

Most popular related searches

hydraulic cylinder

6 mm thickness made of ST 44 steel, U-construction.
Inner reinforcement 5 mm. thickness made of ST 44 steel.
Torsion cross-members on the rear of the chassis.

Two extra extensions on the top.
The extensions are hinged. The supporting profiles are one row nesting type.
The supporting profile is 4mm. and made of ST 4 seel sheet.
There is reinfrocement in the supporting profiles.
The upper chassis is made of NPU 140.
The floor traverses is in U twistling shape.
Floor thickness: 3 mm DOMEX
Side walls thickness: 1,2mm DOCOL
Front Wall thickness: 2 mm ST 37 steel sheet
Tailgate thickness: 1,2mm DOCOL
Shelter thickness: 2 mm ST 37 steel sheet

The operating system of the tailgate is manual. Opening both on rear and side.

Four stages heavy duty cold-drawn telescopic cylinder.
Hydraulic oil tank capacity: 110 lt.
Dual speed downloading valve, limit-check security valve.
35x85 DPA gear pump
PTO: original, mounted on the vehicle

Before the painting, the body is washed with special chemicals to purify the waste materials and cleaned by sand blasting method.
After the pasting on the necessary surfaces of the body, the two-coat epoxy primer and two-coat water-based paint is applicated on the body.
All painting applications are made in the painting cabin.

Mud guards above the rear axles. (steel)
Mud flaps with Arslan Damper logo
Tool box (steel)
Hooks welding on the side-front walls and tailgate for the tarpaulin
Reflector on the tailgate.
Water tank
Ladder on the right side.
Side bars
