Baghouse.com products

Higher Efficiency Filtration Using The Latest Technology From Baghouse.com Baghouse.com prides itself with being on the cutting edge of dust collection technology. In keeping with that spirit, Baghouse.com proudly supplies the latest PTFE Membrane bonded Baghouse filter technology. PTFE membrane filter bags provide the best available technology in terms of efficiencies and filter life.

For years, Bag Filters have been the staple filtration mechanism for dust collectors. Increasingly these are begining to replaced by newer technologies such as Pleated Filter Bags (Or Pleated Media).

Most Common Cartridge Media – Cellulose/Polyester Blends (80/20 blend) and Nanofiber. The vast majority of cartridge collectors (over 80% by some estimates) use either cellulose blends (sometimes called paper media) or nanofiber cartridges.

Your Dust Collector is a complex industrial machine that is made up of hundreds of different components. Sourcing so many different parts can be a maintenance nightmare.

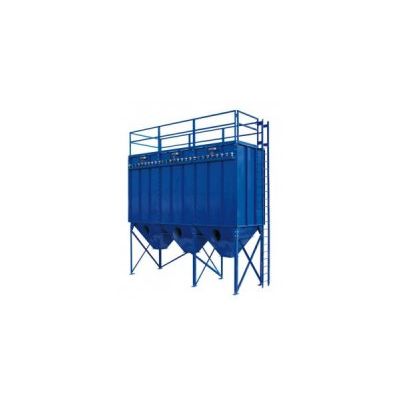

Baghouse.com Brand dust collectors are known the world over as the most powerful and longest lasting Baghouses available. Standard value-added features include such as larger inlet diffusers to prevent hopper turbulence, re-entrainment and facilitate material drop-out. Our Baghouses also include an added expanded quiescent free-board zone between the inlet and the bottom of the filter bags to reduce unnecessary dust load, filter abrasion and interstitial velocity that further enhancing material drop-out all before the air stream even reaches the filters. Baghouses.

A Cartridge Dust Collector uses perforated metal cartridges that are cylindrical shaped and open on one or both ends lined with a pleated nonwoven filtering media. Once installed, one end of the cartridge is sealed off and the open end is used for the clean exhaust. Similar to a Baghouse, the Gas stream is forced through the outside of the cartridge to the inside where it then exits back into the system. Cartridge Collectors are also compatible with Reverse or Pulse Jet cleaning. Large numbers of these Collectors can be installed and used for continuous filtration for a location’s Dust Collection system, such as during Asphalt production.

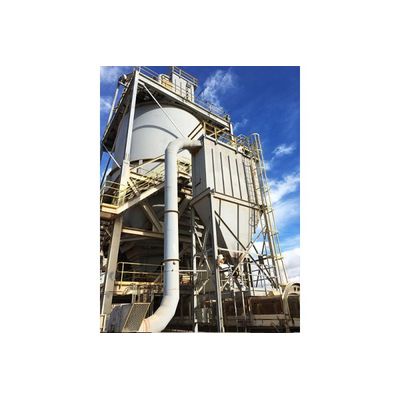

Cyclone dust collectors are often employed as an initial stage collector or prefilter to lighten heavy dusts loads before being sent to a primary collector like a baghouse or cartridge collector. Cyclones are also used for product classification or for material recovery in applications where only dust fines need to be removed and larger size dust can be reclaimed and reintroduced back into the process. By removing coarse particles from the gas stream cyclone allow fabric filter collectors to handle only the finer particles.  This increases the efficiency and service life of the filters in the baghouse or cartridges in the cartridge collector, protecting your larger and most costly units and their filters from unnecessary wear and tear.

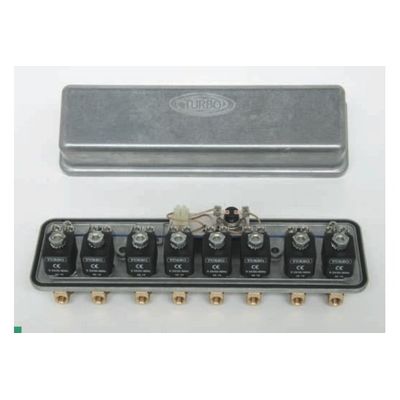

Used to control the Baghouse cleaning mechanism (e.g. Pulse-Jet) along with other Dust Collector functions, Solenoid Valves are valuable components in any System. Baghouse.com carries a full range of Solenoid Valves for use on Dust Collection Equipment.

Baghouse.com offers a complete line of rotary airlocks for dust collectors. Our airlocks can be used in such applications such as gravity discharge of filters, rotary valves, cyclone dust collectors, and rotary airlock storage devices to precision feeders for dilute phase and continuous dense phase pneumatic conveyor systems. We can assist you in selecting the right Rotary Air-Lock for your Baghouse, simply Contact Us for more information, and a free quote.

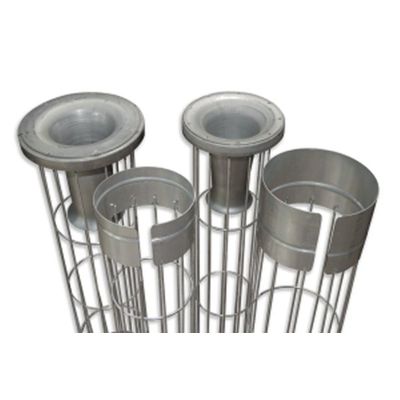

Baghouse.com manufactures a wide range dust collector cages to fit all baghouse makes and models. Whether to fit Baghouse.com dust collector filters, new installations, or aftermarket replacements, Baghouse.com dust collector cages will meet your needs. Cage constructions typically consist of 10, 12 or 20 vertical wires. The horizontal ring spacing on the cage can be 4″, 6″ or 8″. If plenum height restrictions are a problem, two piece cages are available in popular “twist-lock” or “fingers” styles. For areas where moisture or acid corrosion present we can provide a range of materials, often galvanized steel or stainless steel. Top load baghouse cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4″ to 6 1/8″. Wire thickness ranges are; 9 gauge, 10 gauge and 11 gauge. Cages for bottom load baghouses are constructed with a split collar or split ring top.
