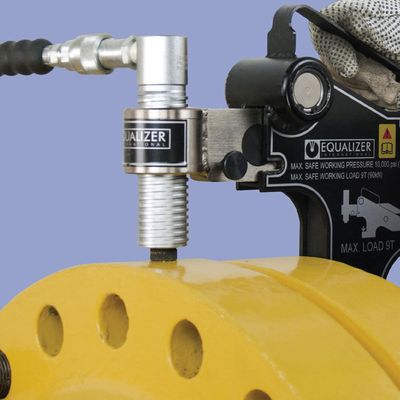

The FA9TE hydraulic flange alignment tool from the Equalizer™ range is designed for precise alignment of high-pressure and large diameter flanges. It addresses both linear and rotational misalignment issues during pipework construction, commissioning, and maintenance operations. This tool delivers a force of 9 tons, ensuring efficient alignment of flanges where misalignment is most significant. It is an essential instrument for ensuring structural integrity and optimal function of piped systems in industrial applications. The kit includes a range of accessories tailored for various flange alignment scenarios, providing versatility and reliability.

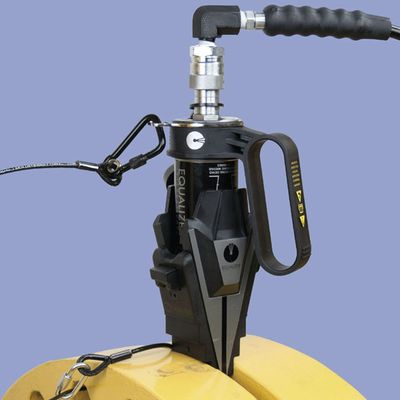

The SWi20/25TE hydraulic flange spreader is an expertly designed tool for the separation of flange joints with a minimum access gap of 6.0 mm (0.25 in). Activated by a separate hand pump, it exerts a significant spreading force of up to 24 T (240 kN). This tool is pivotal in pipework construction, commissioning, and routine maintenance tasks. Engineered with fewer moving parts and devoid of finger pinch points, the SWi20/25TE ensures enhanced safety and ease of use. The spreader enables increased spreading distances per step while simplifying access between residual stud-bolts in the flange joint. Its standard features include a swivel handle, a safety lanyard, and a stepped block attachment. The design improvements offer a superior spreading force over older models in the SW range, providing reliability and efficiency for industrial applications.

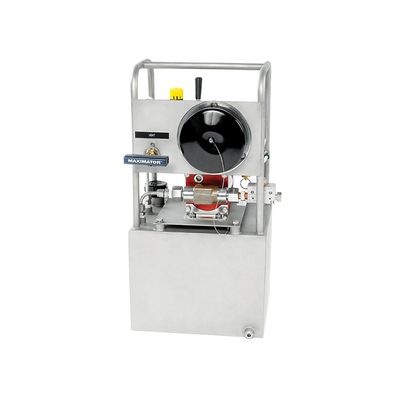

The TP30K-HN High Pressure Tensioner Pump is designed for bolting applications requiring precise and reliable tensioning. This unit is driven by an air diaphragm pump with a single air head operating at a 1:220 ratio. It comes equipped with an oil level gauge, oil return valve, and a bracket for outlet support, all housed within a 2-gallon stainless steel oil reservoir. The unit is capable of reaching calibrated pressures up to 30,000 psi, as indicated by its 4-inch diameter outlet pressure gauge. It also features an air regulator, filter, and pressure gauge to ensure safe and controlled operation. Its stainless steel frame with lifting handles ensures durability and ease of transportation, making it suitable for heavy-duty industrial tasks.

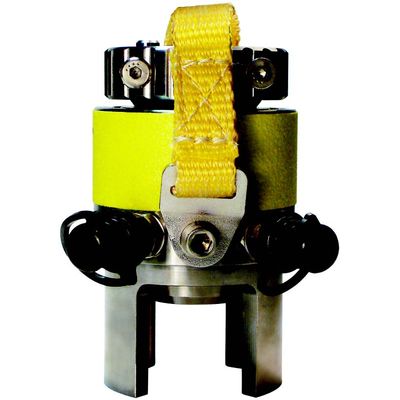

The Octopus Series Sub Sea Tensioning System by Bolttech Mannings is designed for environmentally sensitive applications and diver safety. Featuring a completely water-based system, this product eliminates the use of hydraulic oil, making it eco-friendly. It includes a quick-release reaction nut for easy removal and installation, even on long bolts and damaged threads, enhancing operational efficiency. The tensioner is fabricated from high-strength, corrosion-resistant stainless steel and includes fluorescent anti-slip surfaces for better handling underwater. The compact design incorporates dual hydraulic ports and a 30 mm stroke, catering to a wide range of applications. Additionally, the system is supplied with a lifting strap for convenience. The system is complemented by a Super High-Flow, High-Pressure pump tailored to maximize the performance of the Sub Sea Tensioners.

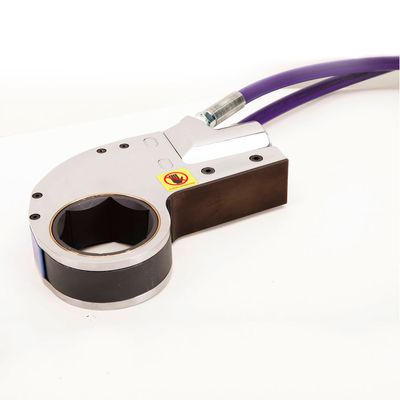

The TL2 Low Clearance Direct Fit Hydraulic Torque Wrench designed by Bolttech Mannings delivers a precise torque performance with an accuracy of +/- 3%. The tool operates at a maximum torque of 1,569 ft-lb (5,424 N-m) and features the highest torque-to-weight ratio in the industry. Constructed from engineered alloy steel that undergoes proprietary heat treatments, this hydraulic torque wrench offers exceptional durability and reliability. The surface of the wrench is coated with a triple process chrome finish providing superior resistance to abrasion and corrosion. The compact design, with the smallest nose radius available, allows for efficient operation in confined spaces. It includes a fixed hydraulic cylinder coupled with a low clearance hexagon hex and comes with a certified calibration chart.

The S8 Induction Machine from Taurus is engineered for thermal expansion applications related to generator retaining rings. Featuring variable frequency settings ranging from 3 to 10 kHz and a power output of 200 kW, this induction system offers versatile and efficient thermal processing. It is equipped with advanced features to manage precise heating requirements specific to thermal expansion tasks. This machine is a part of Taurus` specialized Thermal Induction Systems lineup, which is designed to meet stringent industrial thermal processing needs. Contact Taurus for further details.

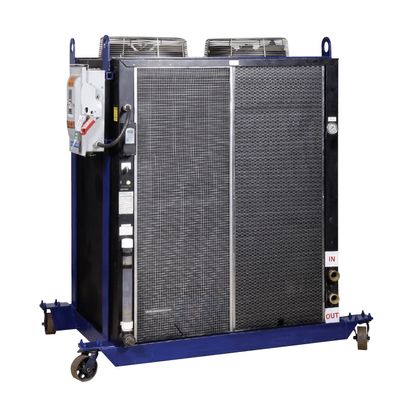

Bolttech Mannings offers advanced chiller systems meticulously designed to integrate with induction systems. These chiller systems provide a closed-loop cooling system, which significantly boosts performance and reliability. This integration helps mitigate risks associated with fluctuating plant water pressure and temperature, ensuring a more consistent and controlled operational environment. Ideal for technical applications requiring precise thermal management, these chiller systems are engineered to maintain optimal operating conditions, enhancing the longevity and efficiency of induction equipment. They are especially beneficial in industrial settings where maintaining a stable thermal environment is critical for the performance and safety of processes.
