Calibration Technologies, Inc. products

Gas Detector for Ammonia and other toxic gases; explosion proof enclosure designed for classified areas. Explosion-proof enclosure for classified areas. Target Gas selective sensor technology. Circuit board sealed in potting material to protect sensitive sensor components and copper tracing from corrosion. Designed for installation in compressor rooms and other classified areas. Transmitters are target gas, sensor element, and range specific. Use only the specified replacement sensor for each detector. Includes a 2 year warranty on sensing element and transmitter.

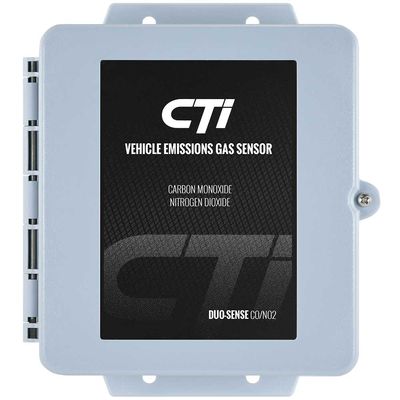

The Duo-Sense 4-20 mA offers both Carbon Monoxide and Nitrogen Dioxide detection in 1 enclosure. Ideal for warehouses, parking garages, loading docks, etc. Includes a 2 year warranty on sensing elements and transmitter. Electrochemical carbon monoxide sensor, (0-200 ppm CO). Electrochemical nitrogen dioxide sensor, (0-10 ppm NO2). Environmentally adaptive heated enclosures designed to adapt to any harsh environment from -20°F to +120°F. Target gas specific electrochemical sensor technology. Industry standard linear 4/20 mA output. Circuit board sealed in potting material to protect sensitive sensor components and copper tracing from corrosion. Weatherproof NEMA 3RX washdown-duty polycarbonate enclosure safe for outdoors and wash-down areas. Optional 18 GA, NEMA 3RX washdown-duty stainless steel housing with hinged lid and captive screw. Optional Warehouse Mounting Kit includes: Wall Plate, Safety Cage that allows sensor access, and 36″ straps for pillar mounting.

Industrial Gas Detector for Ammonia (NH3); designed for harsh industrial environments in the food industry including: food processing, blast freezers, engine rooms, fishing vessels, outdoor locations, and more.

The GG-6 is the perfect full-feature controller for medium to large gas detection systems providing a Stand-Alone Safety System for 1-30 sensors.

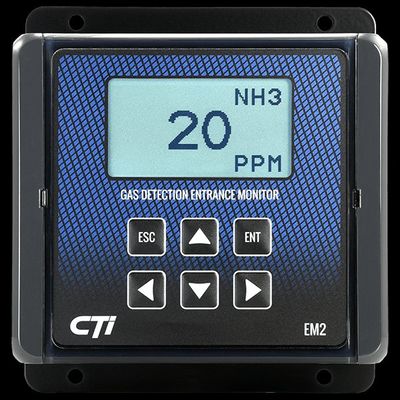

Used for remote display and/or as a single channel controller for gas detection systems. Single-Channel Entrance Monitor for stand-alone or feed-through applications. Includes 3″ diagonal LCD display (operates down to -40F). Onboard 8A relay output with adjustable set point. IP68 enclosure designed for washdown areas and outdoors. Circuit board sealed in potting material to protect components and copper tracing. Industry standard linear 4/20 mA input and output. SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12 Each unit comes with an optional sun shield that can be easily attached for outdoor installations to protect the LCD screen from sun damage.

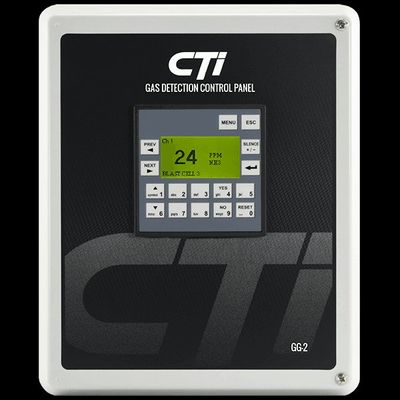

Two channel controller with 4/20 mA inputs for gas detectors; for engine rooms and other 2 channel applications. Two Channel controller for gas detectors of various target gases and ranges. Includes: graphic LCD display, six 10A relay outputs, event logging, dual adjustable setpoints per channel, discrete analog outputs, and power supply. System configuration through user friendly menu-driven LCD operator interface. Weatherproof NEMA 4X fiberglass enclosure safe for outdoors and wash-down areas. six onboard relays standard. Alarm Log records and stores every event.  Industry standard linear 4/20 mA input. Simple menu-driven programming through the LCD operator interface. Power supply can also drive external horn/strobes. Watertight enclosure designed for washdown areas and outdoors. Configurable for CTI sensor line and any other 4/20 mA gas sensor. Horn relay silenceable from front-panel Silence key.

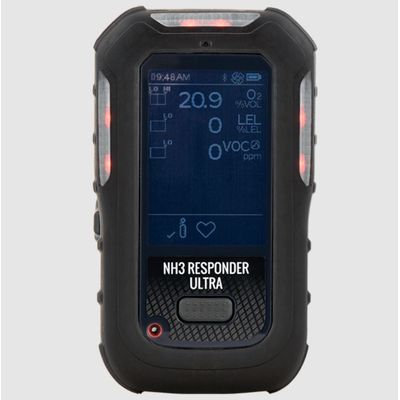

Handheld Ammonia gas detector used for detecting all levels of ammonia for leaks and hazmat response. Detection range from 0-100% LEL of Ammonia (PID: 0-1,000 PPM NH3) (LEL: 4,500 to 150,000 PPM NH3)). Includes Oxygen sensor with range of 0-25% O2 (vol). Smaller and lighter than competitive instruments. Water-resistant design in an integral concussion-proof enclosure. Large LCD allows for easy-to-read monitoring. Integral motorized pump for remote sampling and fast response. Rechargeable lithium polymer battery (14 hours runtime @ -4F). 95 dB alarm tone, bright LED alarm bars, & internal vibrating alarm for noisy areas. Auto backlight: activates in low light & when in alarm. Four alarm levels: instantaneous Low Alarm, High Alarm, TWA and STEL. Records TWA, STEL, and max exposures to gas & displays readings on command. Datalogger with programmable sampling intervals. Available options for additional H2S and CO sensors (call for price and availability).

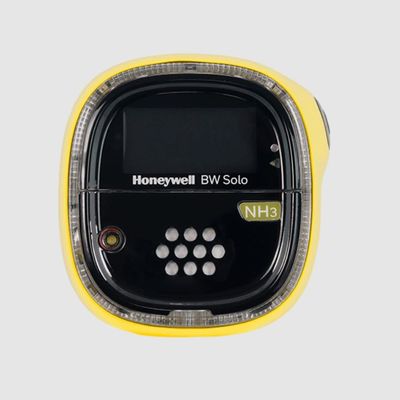

Wearable single gas detector with electrochemical sensor elements to monitor toxic levels of NH3, CO2, H2, O2, and more. Handheld single gas detector for CO2, CL2, CO, H2, H2S, NH3, NO2, or O2. Small and lightweight water resistant design, with integral concussion-proof enclosure. Water-resistant design in an integral concussion-proof enclosure. Large, bright visual LED alarm ring. Internal vibrating alarm for high noise areas. 1 year battery life with field replaceable 3v lithium. Auto backlight: activates in low light & when in alarm. Four alarm levels: instantaneous Low Alarm, High Alarm, TWA and STEL. Compatible with intellidox to store data and perform auto cal.

Multi-gas handheld detector with pump for detecting toxic levels of CO, H2S, O2, LEL, CO2, NH3, CL2 and more. Monitor up 5 different gases with one unit (custom sensor element configurations available upon request – see brochure for more details). Water-resistant design in an integral concussion-proof enclosure. Large LCD allows for easy-to-read monitoring. Integral motorized pump for remote sampling and fast response. Rechargeable lithium polymer battery. 95 dB alarm tone, bright LED alarm bars, & internal vibrating alarm. Auto backlight activates in low light & when in alarm. Four alarm levels: instantaneous Low Alarm, High Alarm, TWA, and STEL. Records TWA, STEL, and max gas exposures (displays readings on command). Datalogger with programmable sampling intervals.

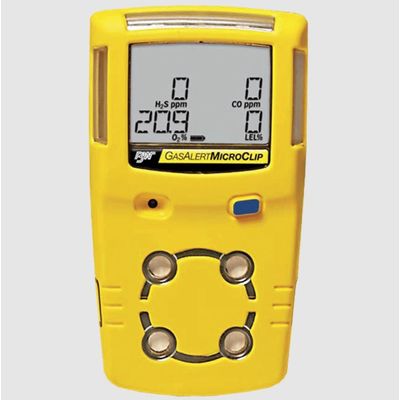

Confined Space 4-Gas monitor for personnel protection when entering confined spaces. Upon ordering, we need one day to complete the factory calibrations to you specific needs. Detects Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), & Combustibles (LEL). Alligator clip for attachment to belts and harnesses. Continuous LCD shows real-time concentrations. Diffusion detection method. One button interface for simple operation. Visual Alarm with 3 bright LED’s and a vibration alert. AC Charger & instructional DVD included.
