CML Innovative Technologies Ltd products
Panel Mount Indicators - Mounting hole 6mm - Superflat Bezel
CML - Superflat Bezel without Resistor
Mechanical features - Lens typ: Flat; Lens size: 3 mm; Bezel typ: Superflat bezel; Screw thread size: M6; Bezel material: Metal; Connector type: Leads of LEDs; Number of Connectors: 2; IP Code: IP40; Max. panel thickness: 8,5 mm.

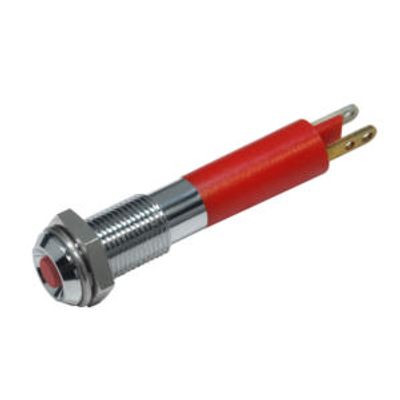

CML - Superflat Bezel with Resistor
Mechanical features - Lens typ: Flat; Lens size: 3 mm; Bezel typ: Superflat bezel; Screw thread size: M6; Bezel material: Metal; Connector type: Tab terminals 2,0mm x 0,5mm; Number of Connectors: 2; IP Code: IP40; Max. panel thickness: 8,5 mm.
Panel Mount Indicators - Mounting hole 8mm - Prominent (exterior) Bezel

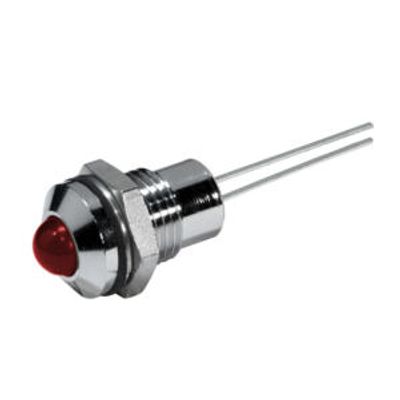

CML - Prominent (exterior) Bezel without Resistor
Mechanical features - Lens typ: round; Lens size: 5 mm; Bezel typ: Prominent bezel; Screw thread size: M8; Bezel material: Metal; Connector type: Leads of LEDs; Number of Connectors: 2; IP Code: IP40; Max. panel thickness: 5,5 mm.
CML - Prominent (exterior) Bezel without Resistor Flashing
Mechanical features - Lens typ: round; Lens size: 5 mm; Bezel typ: Prominent bezel; Screw thread size: M8; Bezel material: Metal; Connector type: Leads of LEDs; Number of Connectors: 2; IP Code: IP40; Max. panel thickness: 5,5 mm.

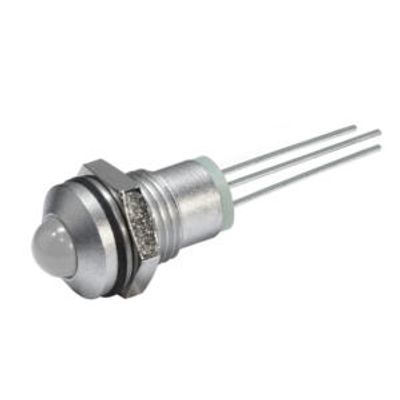

CML - Prominent (exterior) Bezel without Resistor Tri-Colour
Mechanical features - Lens typ: round; Lens size: 5 mm; Lens color: white; Bezel typ: Prominent bezel; Screw thread size: M8; Bezel material: Metal; Connector type: Leads of LEDs; Number of Connectors: 3; IP Code: IP40; Max. panel thickness: 5,5 mm.
