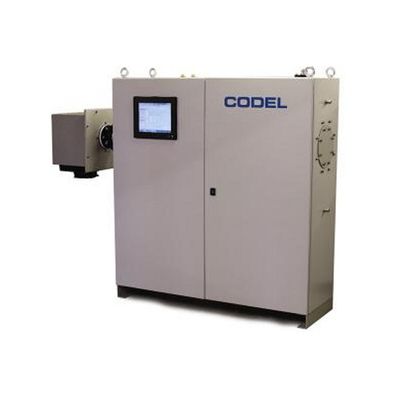

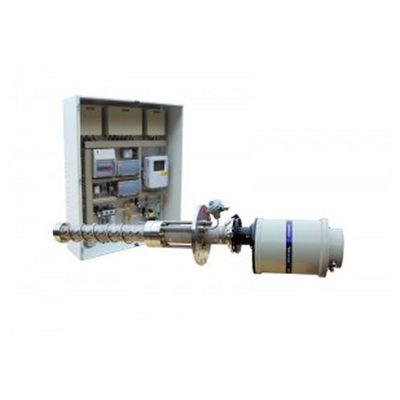

The GCEM40E hot extractive multi-channel gas analyser is CODEL’s industry-proven continuous emissions monitor for difficult applications. Designed exclusively for use on a wide range of applications where the flue gas temperature is abnormally high, low or saturated. Three decades of development, knowledge and practical experience have been utilised to produce this advanced technology gas analyser which gives complete flexibility of use on process or emissions applications whilst delivering superb accuracy and repeatability at a competitive price.

The GCEM4000 is a multi-channel flue gas analyser that uses Non-Dispersive Infrared Absorption (NDIR) technology. It provides high accuracy, low maintenance measurement of all the key combustion process emissions to atmosphere. It is capable of operating in very high dust loading conditions, up to several gm/m3 of dust. Its performance can be verified automatically or manually on demand by the injection of zero and span protocol gases into the probe sample chamber. The GCEM4000 is MCERTS certified and satisfies QAL1 of the EU Standard EN14181 for LCPD emission limit values above 40ppm.

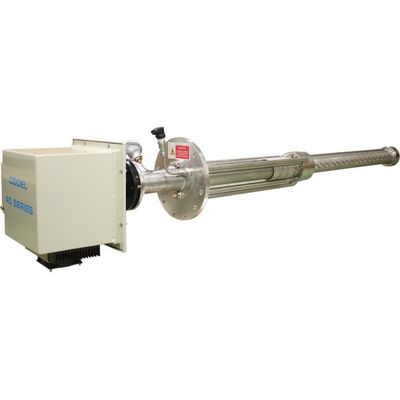

The GCEM40 series is the latest generation of CODEL’s world renowned in-situ monitors. Our development, knowledge and practical experience have been utilised to produce this advanced technology gas analyser which gives complete flexibility of use on process or emissions applications whilst delivering superb accuracy and repeatability at a very competitive price. Designed for use primarily on combustion processes, the GCEM40 series measures key pollutants such as CO, NO, NO2, NOx, SO2, CH4, CO2 and H2O using an infra-red spectroscopy to ensure that there is no cross sensitivity from other contaminants in the gas stream.

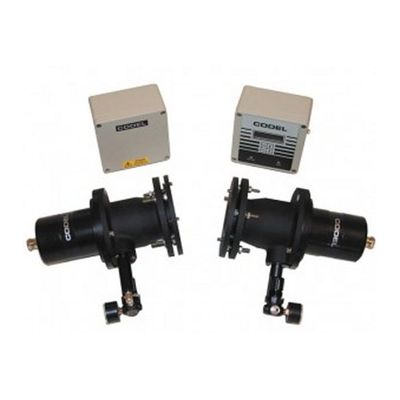

The EnergyTech 101 Opacity Monitors consist of a visible light transmitter and receiver arrangement with digital data processing in a local display unit. The monitors can display data in either opacity, extinction or dust density in mg/m3 or normalised dust density in mg/Nm3. The EnergyTech 101 possesses four analogue inputs for normalisation data; temperature, oxygen, pressure and water vapour.

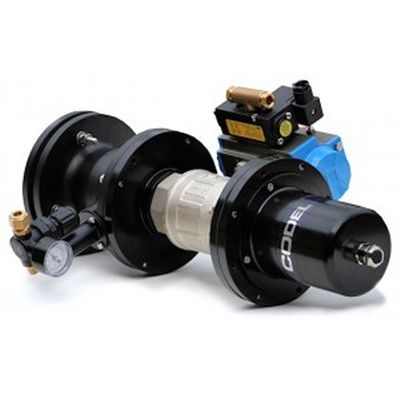

The DCEM2100 provides a continuous measurement of opacity or dust concentration in flue gases by continuously measuring the transmissivity of visible light across a process duct or stack. Its dual-pass optical arrangement is based on twin transmissometers measuring in opposing directions through the same section of the gas stream, providing not only an accurate average of the dust loading, but also providing a unique dynamic assessment of any misalignment errors due to stack movement.

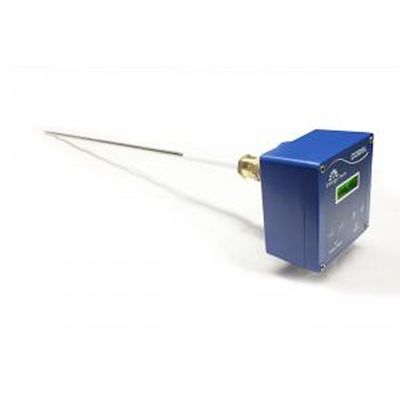

The EnergyTech 301 is a low cost dust monitor using well-proven tribo-electric technology providing accurate and rapid results. The EnergyTech 301 requires no critical alignment and has no optical surfaces to keep clean. The sensor is easy to install, requiring only a simple probe and is ideal for small duct sizes. Minimal maintenance is required, infrequent probe cleaning and low installation costs make this technology extremely attractive for dust collector monitoring.

The VCEM 5000/51000 represents the latest generation of CODEL’s unique flow monitors. These systems measure the velocity of stack gases using a highly accurate time of flight measurement that is derived from a cross correlation analysis of the infra-red emissions of the turbulent gas. Two robust infrared detectors are used for the prime sensing, mounted on the stack or duct typically 1m apart in the direction of flow. High efficiency air curtains are fitted to considerably extend the time between maintenance periods and window cleaning (typically 1 year).

The TunnelTech 101 Visibility Monitor (VIS), is an essential part of any road or rail tunnel safety system. Firstly, it monitors the Visibilty within the tunnel and ensures that the tunnel ventilation system provides sufficient clean air for drivers to clearly see the road ahead. Secondly, used in combination with other TunnelTech 101 VIS monitors, the operator can quickly detect the focus of the fire if it is also equipped with the optional PT100 temperature sensor to accurately measure ambient air temperature in a range of -15 to 1050C.

The TunnelTech 102 Cold Smoke Monitor (CSM), is an essential part of any road (or rail) tunnel safety system, the CODEL CSM detects smoke from a fire to rapidly warn the operator of the hazard. Secondly, used in combination with other TunnelTech 101 VIS monitors, the operator can quickly detect the focus of the fire if it is also equipped with the optional PT 101 temperature sensor to accurately measure ambient air temperature in a range of -15 to 1050C.

The TunnelTech 201 Air Quality Monitor, is an essential part of any road or rail tunnel safety system. Firstly, it monitors the atmosphere within the tunnel and ensures that the tunnel ventilation system provides sufficient clean air to protect tunnel users health and for drivers to clearly see the road ahead. The TunnelTech 201 analyser uses well proven infra-red techniques to determine CO and NO concentrations and optical attenuation to monitor Visibility levels. As there is only one moving part, reliability levels are very high and maintenance requirements are extremely low.
