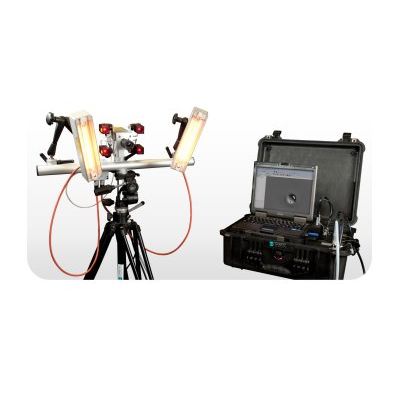

The Q-800 Portable Shearography System is a fully compact and robust measurement system used for quality control, Non- Destructive Testing (NDT) of advanced non-homogenous materials. Consisting of a high-resolution CCD camera built into a miniaturized shearographic interferometer with automatic controllable shearing optics (no manual shearing adjustment required), the Q-800 Shearography Sensor is the lightest and smallest of its kind. The integrated light array source provided through adjustable laser diode modules gives users full control over illumination optimization.

Particle Image Velocimetry (PIV) is a non-intrusive laser optical measurement technique for research and diagnostics into flow, turbulence, microfluidics, spray atomization, and combustion processes.

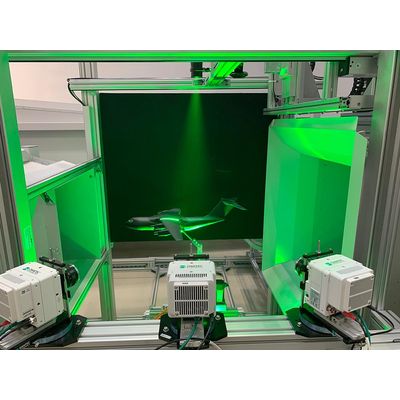

Flows have a strong three-dimensional behavior.  With Volumetric Velocimetry (VV), often called Tomographic PIV or Tomographic PTV, you can measure all three velocity in a volume (3D3C). Whether your interest is time-resolved Particle Tracking Velocimetry (4D-PTV) to obtain Lagrangian particle trajectories, or Tomographic PIV to obtain high-resolution Eulerian data, DynamicStudio has the solution to your volumetric testing needs..

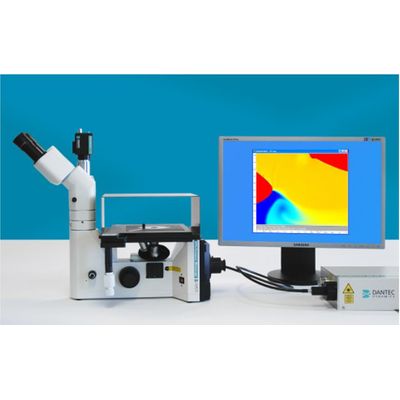

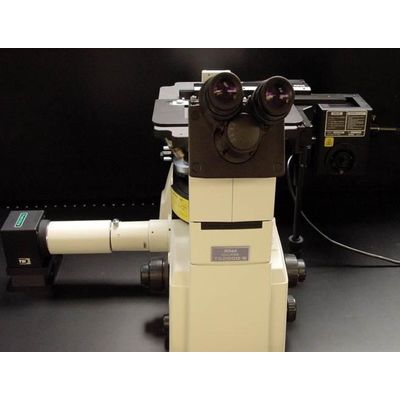

The MicroPIV system is suitable for experiments simulating biological flows, validation and test of flows in MEMS, design and development of Lab-on-chip devices, two-phase flow microsystems, and mixing enhancement studies. MicroPIV measures two velocity components in a plane (2D2C). Stereo MicroPIV measures three velocity components in a plane (2D3C).

The MicroLIF measures concentration, temperature, and pH measurements in micro scale. The system is suitable for experiments simulating biological flows, validation, and test of flows in MEMS, design and development of Lab-on-chip devices, two-phase flow microsystems, and mixing enhancement studies.

Do you have an unsupported MicroPIV System that you want to retain and keep up to date? Dantec can help by driving your old hardware directly from the DynamicStudio imaging software platform, which supports 100+ cameras, several synchronizers, and numerous lasers that other vendors have previously provided.

Planar laser induced fluorescence (PLIF) is an optical diagnostic technique widely used in fluid and gas applications. PLIF has proven to be a valuable tool for flow visualization as well as for quantitative whole-field measurements of scalars such as concentration and temperature in liquid and concentration in gaseous flows. Applications can be found in process engineering, biomedical engineering, and fluid dynamics research.

The FlexLDA system is a full-featured turnkey solution for working distances up to 500 mm and velocities up to 68 m/s. It uses compact lasers and Bragg cells integrated into the stable and robust design. The system is very easy to set up due to the factory aligned and calibrated optics.

FlowExplorer is a totally new concept in Laser Doppler Anemometry (LDA) for turbulence studies. It consists of a factory-aligned and calibrated optical probe, an accurate signal processor, and a Windows software package with extensive features for graphical and tabular presentation of results. The FlowExplorer family consists of a range of optical heads with either diode lasers or powerful Diode Pumped Solid State (DPSS) lasers with up to 500 mW laser power per wavelength. With three different wavelengths available, configurations for measuring all three velocity components are possible.

The FiberFlow LDA system is a highly flexible solution for non-intrusive measurements of velocity at a point in space as a function of time. This Laser Doppler Anemometry (LDA) solution uses fiber optics to connect the laser and the transceiver probe. Many applications benefit from or require a fiber optic connection for intrinsic safety, submersion, or remote locations. We offer a variety of probe sizes, laser types, and configurations of transmitter and processor, which allows you ultimate flexibility to meet your flow measurement needs.
