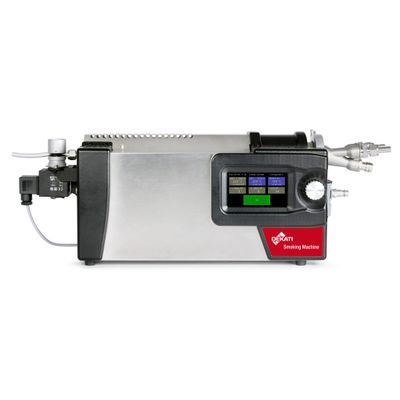

The Dekati Smoking Machine is a versatile system for taking and diluting controlled puffs with adjustable volumes and profiles. Repeatable and adjustable puffs are important for characterizing and developing electronic cigarettes and other inhalable aerosol generators. The Dekati Smoking Machine is developed to allow real-time particle mass and size distribution measurements even from single puffs when combined with an aerosol spectrometer such as the Dekati High Resolution ELPI+.

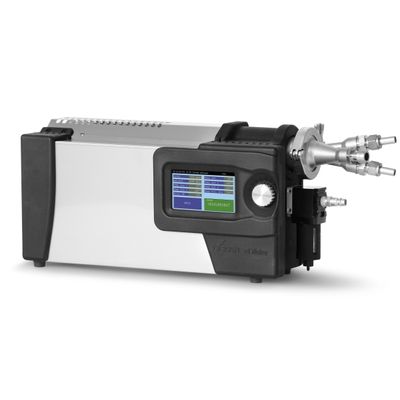

Dekati eDiluter is a portable dilution system that makes sample conditioning as easy as it can be. The Dekati eDiluter comes standard with a fixed 1:60 dilution factor, but it can as well be provided with a customer specific dilution factor in the range of 1:25-1:225. The Dekati eDiluter dilution parameters can be monitored on an integrated LCD display and a rotary controller knob allows the user to fine tune the dilution temperature. The high sample output of the Dekati eDiluter allows the system to be fully integrated with all Dekati Instruments and is also compatible with all other commercially available measurement instruments.

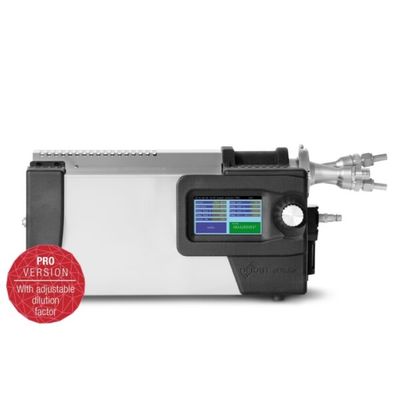

Dekati eDiluter Pro is a portable dilution system that allows easy sample conditioning for a wide range of particle measurement applications. Its compact structure includes a two-stage dilution system with an adjustable dilution factor ranging from 1:25 to 1:225. The high sample output of the Dekati eDiluter Pro allows the system to be fully integrated with all Dekati^® Instruments and is also compatible with all other commercially available measurement instruments.

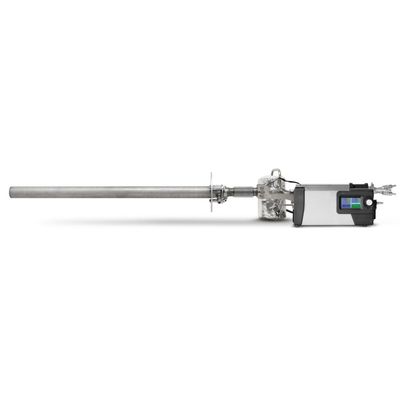

The Dekati eDiluter Pro 1200C is a modified version of the eDiluter Pro dilution system specifically designed for particle measurements from extreme temperatures such as measurements directly from a combustion zone or flame. The eDiluter Pro 1200C includes the standard eDiluter Pro unit combined with the Dekati High Temperature Sampling probe that enables particle sampling from up to 1200 °C. The system has all the benefits of the standard eDiluter Pro added with the ability to take aerosol sample from extremely high temperatures.

The Dekati Diluter DI-1000 is an easy-to-operate and reliable dilution device for diluting aerosol and gaseous samples from any source.

The Dekati High Pressure Diluter DEED-300 is a two-stage dilution device for taking aerosol samples from high pressure conditions, such as in pre-DPF tailpipe emission measurements. The DEED-300 is designed especially for high pressure conditions, and it always keeps a constant dilution factor regardless of the sample pressure inside the tailpipe. The total dilution factor in the DEED-300 unit is typically between 40 and 60 and it is individually calibrated for each unit.

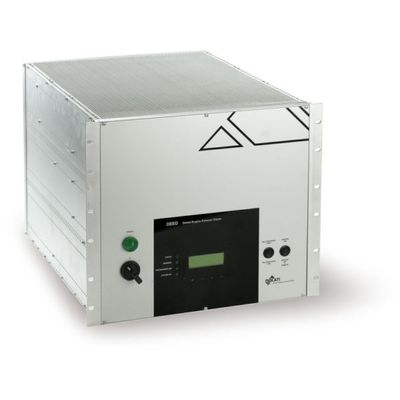

The Dekati Engine Exhaust Diluter DEED is an engine exhaust conditioning system that fulfills all requirements and recommendations set forth by EURO 6 legislation for a VPR (Volatile Particle Remover).

The Dekati Axial Diluter DAD is a simple and cost-effective dilution tool that can be used as a stand-alone unit or as a part of other aerosol sampling and dilution systems. The DAD is especially designed for use with Dekati Fine Particle Measurement Instruments and applications where low consumption of dilution air is a requirement. The Dekati Axial Diluter is made of stainless steel which allows the use of the DAD also in high temperature applications up to 500 °C.

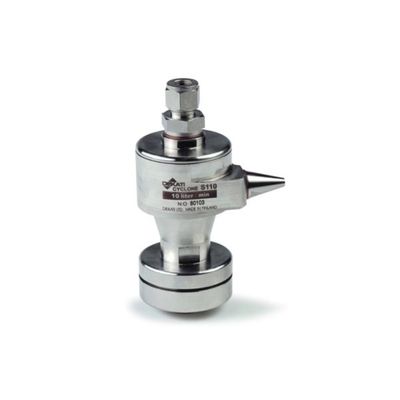

The Dekati Cyclone is an all stainless-steel cyclone that is used as a part of a sampling system for removing large particles from an aerosol sample stream before the sample enters the measurement instrument.

Dekati Oxidation Flow Reactor, DOFR, is a unique, all-in-one solution combining sample conditioning and an oxidation flow reactor for secondary aerosol (SA) formation studies.
