Delta M Corp. products

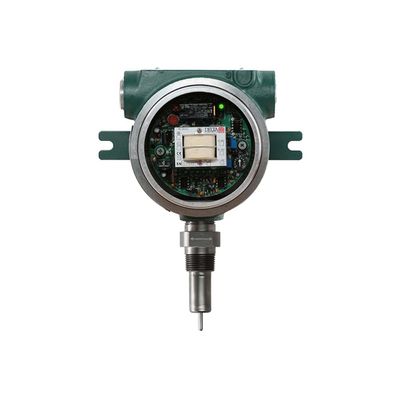

Thermal Differential Mass Flow Switch for the detection of the mass flow rate of liquids and gases. Wide operating temperature range -100°F to +850°F (-70°C to +458°C). Wide flow range of .01 to 5 feet per second (fps) in oil, 2.5 fps in water and .1 to 500 fps in gases. Two year workmanship warranty. Removable Plug-in electronics. Free of all moving parts that can stick, coat or fail. Fast response time of .5 to 10 seconds depending on the media. Self heating sensor design improves repeatability. No separate heater to fail or slow response time. Optional Glass window (XW).

Simple field adjustable thermal differential switch for mass flow, level, and/or temperature of liquids or gasses with time delay adjustable from 0 to 300 sec. Wide operating temperature range -100°F to +850°F (-70°C to +458°C). User configurable operating power 110VAC, 220VAC, or 24VDC. Removable, plug in electronics. Can be configured with 2 independent outputs, such as level or mass flow with temperature or two mass flow rates. Level response time of .1 to 1 second on wetting, media dependent Flow response time of .5 to 10 seconds, media dependent Can be used for either gas or liquid applications including interface detection. Self heating sensor design improves repeatability. No separate heater to fail or slow response time. Two Year Workmanship Warranty

Thermal differential point level switch for the detection of liquid  level in all vessels. Wide operating temperature range -100°F to +850°F (-70°C to +458°C). Switch on level change of .03 inch without concern for changing temperature, density, dielectric constant or chemical composition. Removable Plug-in electronics. Two year workmanship warranty. Free of all moving parts that can stick, coat or fail. Fast response time of .1 to 1 second on wetting, media dependent. Self heating sensor design improves repeatability. No separate heater to fail or slow response time. Optional Glass window (XW).

Broad line of thermocouple types and diameters. Temperature ranges above 2400°F. Small diameter, fast time response sensors built to your specs.

Built exactly to your specifications. Measure temperatures to 1200°F (650°C). Assemblies available down to .062″. In many cases a multipoint solution is available.
