Digested Organics LLC products
Filtration Equipment
Digested - Spiral Brush Screen Filter
The wastewater to be filtered flows into the top of the unit where it enters the interior of the cylindrical screen. Clarified material, or filtrate, exits the unit by passing through the screen while the solids accumulate inside the screen. The motor spins a spiral-shaped cleaning brush within the screen, keeping the screen clean and pushing the accumulated solids to the purge outlet at the bottom of the unit. An automated valve opens periodically to discharge these solids out of the unit—there is no disruption to the process flow and no shut down time for backwashing.
Digested - Two-Step Reverse Osmosis Systems
Raw, screened, or filtered liquid is first passed through the Forward Osmosis (FO) membrane stacks, where 50-95% of the water is removed by passing through the membrane and into a salt water solution.The concentrate exits the FO system and can be collected in a tank nearby.
Digested - Nutrient Concentration & Water Reclamation System
By combining our exclusive solutions, such as the Spiral Brush Screen, stainless steel Ultrafiltration (UF) and Two-Step Reverse Osmosis™ (TSRO), we can deploy totally integrated solutions for nutrient concentration and water reclamation. The Nutrient Concentration & Water Reclamation (NCWR)™ System can process raw wastewaters, manures, and digestates, and separate the flow into clean, reusable water–ideal for facility re-use or discharge–and concentrated liquid fertilizer. With most materials, we can recover more than 70% of the total volume as clean water while concentrating the nutrients about 3-5x.
Filtration Equipment - Stainless Steel Ultrafiltration

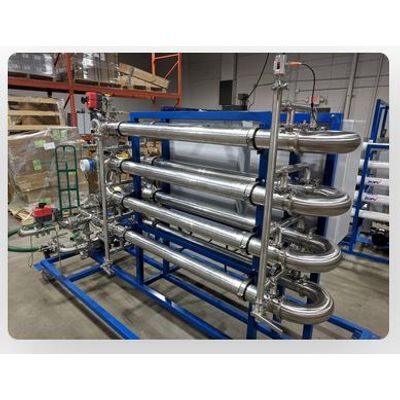

Digested - Stainless Steel Ultrafiltration Systems
Four 4″ diameter x 5′ long elements containing 14 UF membrane tubes each. Total filtration area: 52.8 sq.ft. Footprint: 10′ x 4′. Application: Dairy Processing.
Digested - Stainless Steel Ultrafiltration Systems
Eight 4″ diameter x 5′ long elements containing 14 UF membrane tubes each. Total filtration area: 105.6 sq.ft. Footprint: 10′ x 4′. Application: Manure Filtration.
Digested - Stainless Steel Ultrafiltration Systems
Two 18″ diameter x 10′ long elements containing 278 UF membrane tubes each. Total filtration area: 1048 sq.ft. Footprint: 15′ x 4′. Application: Manure Filtration.
