Discovery Drilling Equipment (DDE) products

Discovery offers conventional rigs up to 1000 Ton capacity. This design includes Cantilever type Masts that can be raised by the Drawworks or with hydraulic cylinders and parallelogram type substructures that are raised by hydraulic winches.

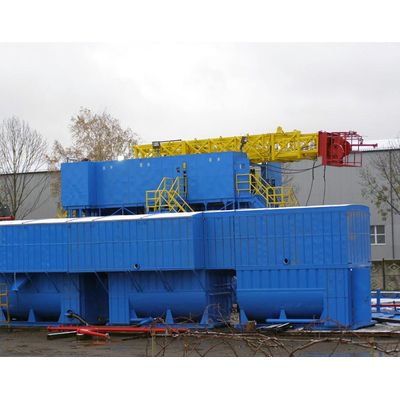

Discovery offers the “Crawler” type rigs up to 500 Ton capacity. This design includes Cantilever type Masts that can be raised by the Drawworks or with hydraulic cylinders and modular box on box type substructures. These substructures allow for transverse skidding of the drill floor as well as longitudinal skidding of the substructure.

Discovery offers limited footprint type rigs up to 500 Ton capacity. This design includes Bootstrap type Masts that are raised by the Drawworks and modular box on box type substructures. This design allows for locations where size is limited.

Discovery offers self propelled Carrier rigs up to 180 Ton capacity design for medium workover and light drilling operations. This design includes a 4 to 7 axle Carrier, depending upon the required capacity, and hydraulically telescoping Masts.

Discovery offers Trailer rigs up to 250 Ton capacity design for heavy workover and medium drilling operations. This design includes a 2 to 4 axle Trailer, depending upon the required capacity, and sectional Masts that are raised hydraulically.

Cantilever Type, 200 Ton to 1000 Ton Capacity, Conventional Drawworks or Hydraulic Raising. Bootstrap Type, 150 Ton to 500 Ton. Capacity, Conventional Drawworks Raising. Sectional Type, 75 Ton to 250 Ton Capacity, Hydraulic Raising.. Telescoping Type, 75 Ton to 180 Ton Capacity, Hydraulic Raising.

Parallelogram Type, 75 Ton to 1000 Ton Capacity, Conventional Drawworks or Hydraulic Raising. Modular Type, 75 Ton to 500 Ton Capacity

AC Electric Drive, 1000 HP to 4000 HP. Mechanical Drive, 300 HP to 1000 HP.

75 Ton to 1000 Ton. DDE Standard SA2 1/2. 180 Microns minimum, 60 Microns minimum. Customer specifications.
