Eldan Recycling A/S products

The Eldan Aspirators are used in tyre recycling to separate the textile from the rubber granulates and to classify the rubber granules into three sizes and dust.

As a basic principle, the Eldan Classifiers use oscillating motion and screens to separate either textile and rubber or metals and the plastic fraction. In tyre recycling an Overband Magnet is also used to retrieve remaining steel.

Efficient Classifiers to recover metals from the plastic fraction originating from the separation tables. This results in minimal loss of metal.

The Drum Wind Screen have been developed to separate crushed complex scrap into: Light fraction and possible cyclone fraction. Heavy fraction. The heavy fraction is classified into coarse and fine particles.

The Overband Magnet seperate ferrous particles from other material e.g. aluminium or rubber granulate.

The Eldan Separation Table is an essential machine for material separation in recycling of e.g. Cables (aluminium or copper), Electronic and electrical waste (i.e. WEEE), Aluminium scrap, Tyres (upgrading quality by removing foreign objects), Shredder light fraction (SLF/ASR).

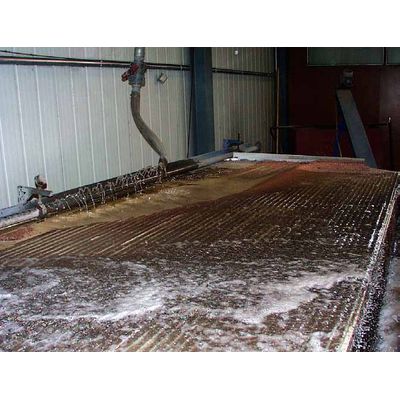

The Water Separation System is a cost effective solution to recover metal dust and fine wires from the plastic fraction after the metal separation. By using a well-balanced combination of water, table inclination and oscillating movements you will get an almost clean plastic fraction with metal losses as low as 0.2%. The metal fraction will have a purity of 98-99% (by weight) after drying of the metal. The water is cleaned through sedimentation and is recirculated in a closed system.
