Environmental Compliance Equipment (ECE) products

ClearFlow CF-125 125 Gallon Batch Treatment capacity up to 375 GPH, Semi automated process. Poly Propylene and Stainless Steel construction. Mobile unit allowing placement near water to be treated then stored out of the way until needed. Air Diaphragm pump for filling and draining system. 100 micron bag filter for solids removal.

ClearFlow CF-200 200 Gallon Batch Treatment capacities up to 400 GPH, in a fully automated process. Stainless Steel construction, powder and clear ceramic coating. Automation includes HMI Touchscreen. VFD on all motors, process monitoring to ensure proper treatment. 250 pound ClearFloc hopper with flexible auger dosing. Optional Sludge Press available that will remove more water from the flocc solids by providing a progressive pressure force as the solids are advancing on the belt.

ClearFlow CF-600 600 Gallon Batch Treatment capacity up to 1200 GPH. fully automated process. Stainless Steel construction, powder and ceramic coating. Automation includes HMI Touchscreen, VFD on all motors, process monitoring to ensure proper treatment. 250 pound ClearFloc hopper with flexible auger dosing. Optional Sludge Press available that will remove more water from the flocc solids by providing a progressive pressure force as the solids are advancing on the belt.

ClearFlow CF-800 800 Gallon Batch Treatment capacity up to 1600 GPH, fully automated process. Stainless Steel construction, powder and ceramic coating. 500 pound ClearFloc hopper with flexible auger dosing. Sludge Press included that will remove more water from the flocc solids by providing a progressive pressure force as the solids are advancing on the belt.

ClearFlow CF-1200 1200 Gallon Batch Treatment capacities up to 2400 GPH, in a fully automated process. Stainless Steel construction, powder and clear ceramic coating. Automation includes HMI Touchscreen. VFD on all motors, process monitoring to ensure proper treatment. 1200 pound ClearFloc hopper with flexible auger dosing. Optional Sludge Press available that will remove more water from the flocc solids by providing a progressive pressure force as the solids are advancing on the belt.

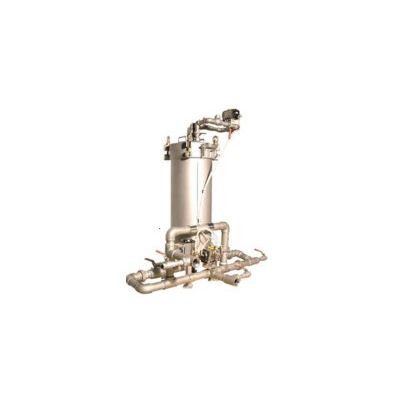

WRO3 Ozone System: Water Rights Ozone Systems can generate up to 240 g/hr of ozone using oxygen fed Corona Discharge generators. The system is also available with secondary oxidation injection potential to inject either H2O2 or Chlorine and/or can be fitted with UV united to generate and Advanced Oxidation format. Two large bag filters are included to remove suspended solids. The Bag Filters alternate operation when lindede. The system comes with pre and post ORP sensors that control ozone production. Unit constructed of Stainless Steel that is powder coated.

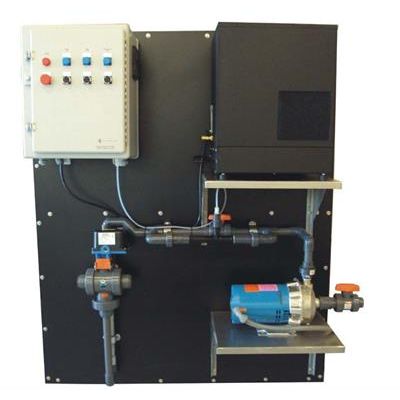

WRO3 Panel System: The WRO3 Panel System is a compact corona discharge ozone generation and application system designed to take up minimal space. The system is mounted against a wall and has a width of only 20". The system can include a pump and venturi to circulate the water being treated or air can be fed through the unit for aeration purposes. The system can be configured to provide up to 120 g/hr of ozone and take up minimal space. The system is complete with an air prep unit that generated an almost pure oxygen fed for the ozon generator. Can be fully automated and integrated into any process.

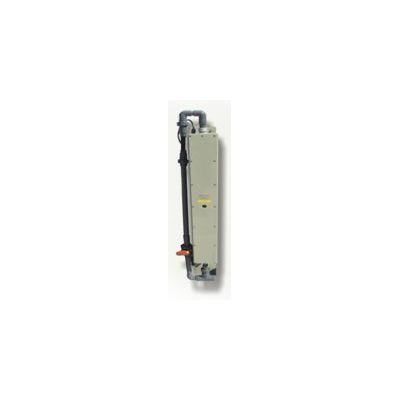

The WR UV/03 unit provides advanced oxidation for wastewater treatment utilizing UV sterilization and Ozone combined in one unit. The water to be treated is pumped into the unit and first passes through a venturi where Ozone that is generated from the UV light is injected into the water. The water is then directed into the unit through a quartz tube where it is subjected to UV light @ 254nm. The combination of having Ozone and UV is considered Advanced Oxidation and provides one of the strongest means of oxidizing organics, coagulating solids and destroying bacteria. An additional oxidizer such as chlorine, bromide or hydrogen peroxide can also be added to further enhance the process. The oxidizers can be injected or passed through a dispenser.

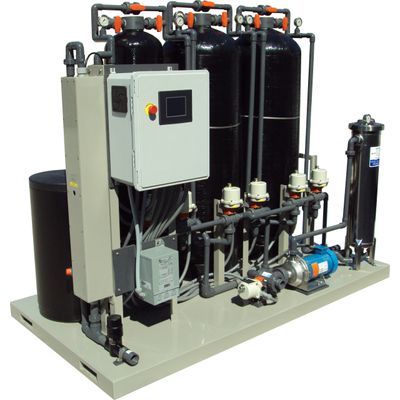

WR3 Filtration: Water Rights Multi-Media Filtration units combine media`s to generate a filtration process tailored to your needs in a fully automated system. Auto back flush with variable speed pump control to assure proper flow rate per media. Back flushing programmed daily and multiple times available. Pre-filtration is included using a bag filter. Post UV/Ozone/bromide oxidation. Unit constructed of Stainless Steel that is powder and ceramic coated.

Dual Reverse Lamella Clarifier is a unique design utilizing dual coalescer plate packs situated in the flow path where the first pack flows from top to bottom and the second pack flows from the bottom to the top. This design increases contact time as well as auto flushes the first pack which would experience the most solids. Dual settling chambers and on board Oil Collection Tank adds to the unique design.
