FIBERSCOPE.net products

Pipe Cameras - Pipe Camera Accessories

Heavy Duty 2 Inch Pipe Camera Skid

This device is an awesome addition to any inspection system with 2" diameter camera head. The roller skid is perfectly fitted to our Python push camera. It is made of strong, corrosion resistant aluminum which gives the accessory a robust build. The 1 ½ inch wheels allow the skid to roll easily through the pipes. The roller skid body provides a protective housing for the camera head and increases its lifespan. This accessory is especially convenient to navigate easily through S- and P-Traps during an inspection.

TrapMaster - Sewer Camera Skid

Sewer camera skid TrapMaster keeps your camera centered and protected from wear and tear. It allows 1"-1.23" diameter heads easily negotiate 4” P-traps. These durable skids are designed for easy maintenance, and are easy to clean.

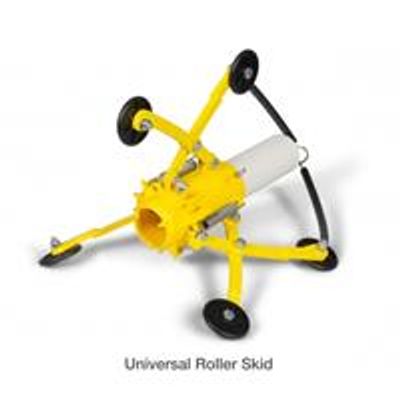

Universal Roller Skid for Sewer and Drain Cameras

Universal Roller Skid for 6" to 18" Lines. Dynamically adjusts to required pipeline diameter — no extra parts, tools or manual adjustments required. For use with the TRITON, TROGLOPROBE-SL and GECKO push camera systems in 6”-18” pipelines. Lightweight, durable, easy to attach skid that built from corrosion resistant composite nylon. Negotiates 6” x 45° elbows and 8” x 90° bends. Six 2” wheels help guide the camera through the pipeline and keep the camera head centered. Optional 3” wheel kit and LED light kit available, so you can use it in larger diameter pipes. Three optional waterproof auxiliary flashlights provide extra lighting with 6,000 candlepower.

Pipe Camera VIPER Replacement Probe

Viper insertion probes are water-proof PVC coated fiberglass cables with a 36mm (1.4”) diameter and come in 3 different lengths - 20m (65.6`), 35m (114.9’) and 40m (131.2`) – to match your specific inspection requirements. They are suited for different applications to inspect remote areas, such as: sewers, ducts, pipelines, heat exchangers, tanks and vessels. A special point touch connector allows for tight waterproof coupling with a high-resolution CCD camera. It is also compatible with a Push Cam-4 camera. There is also a flexible spring coiled joint to navigate corners. Easy to attach, clean and care for.

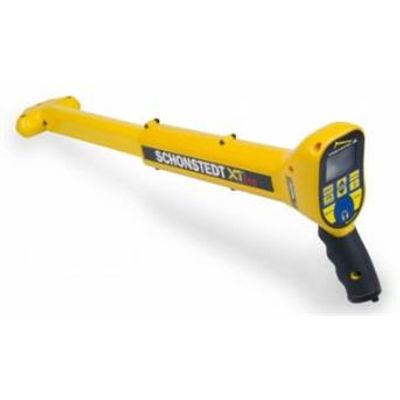

Model XT512 - Detection Wand Portable Locator

The world’s most portable inspection camera locator featuring 512Hz precision. The new XT512 “Detection Wand” locator combines portability with a low frequency sonde and passive locating capabilities found in larger more cumbersome units. Using the XT512 you can locate and determine the depth and location of your sewer/pipe inspection camera (camera tracking), or any small sonde (like the TM50910 from Schonstedt). The XT512 is instrumental in locating blockages and obstructions in non metallic pipes.

CPI - Universal Roller Sewer Camera Skid

Gear up your push camera with a universal roller skid to inspect bigger pipes with ease. This addition to your inspection system allows it to effectively inspect pipes that are too big by lifting the camera head up from the bottom of the pipe. The universal roller sewer camera skid can work with camera heads from 1.3" to 1.9" in diameter. This dynamic skid is made with a special design to expand automatically once you are in a bigger pipe.
