General Oceanics Inc. products

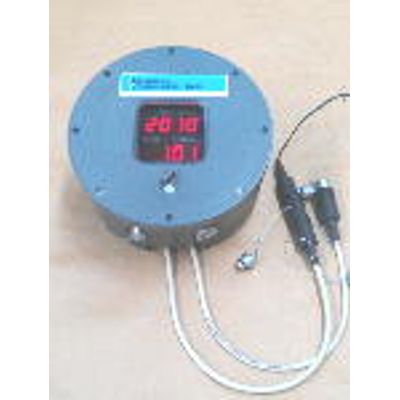

Readout For 4000 Series Blocks, Cable Out Meters, Cable in/out display (Derived from Solid-state hall-effect magnetic sensors from block.)

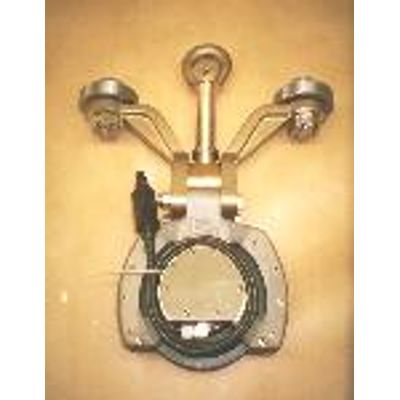

Counterbalanced/Fairlead Blocks and Readout. The 4000 series Counter Balanced Blocks utilize a weight which is counterbalanced above the pivot point. The cable exerts only a slight force for the sheave to remain co-planar with the bisected cable, regardless of ship roll, pitch, yaw and trawling operations. On standard blocks, further cable protection is provided by a cable guard. This ensures positive cable entrapment during times of slack cable. Sensing and display electronics measure cable payout and rate. As cable is run over the sheave, solid state magnetic switches sense the speed and direction of the sheave`s rotation. These signals are processed by solid-state microprocessor-based circuitry. `Fairlead Blocks` are designed and manufactured the same as counterbalanced blocks without the counter-balance feature.

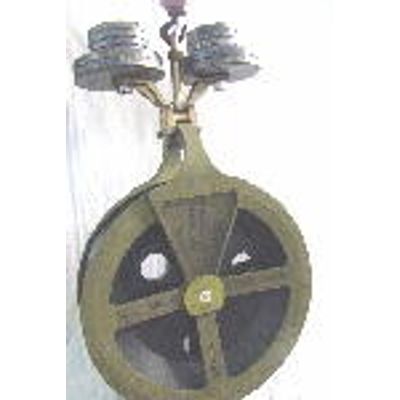

Block nylatron counterbalanced,2M. G.o.` nylatron sheave, light duty counterbalanced block, wide sheave, for load rating of 6600 lbs. Swl with maximum wire diameter of 8mm. Bending radius 12.53 (31.8cm).

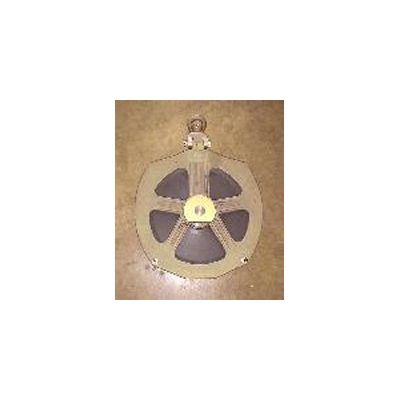

Block, fairlead 1.5 narrow sheave nylatron. Fairlead block with nylatron sheave for light duty rating of 6600 lbs. Maximum wire diameter .312` weight 70 lbs (32kg). Sheave Diameter .48m (18.75`)Bending radius .24m (9.39`).

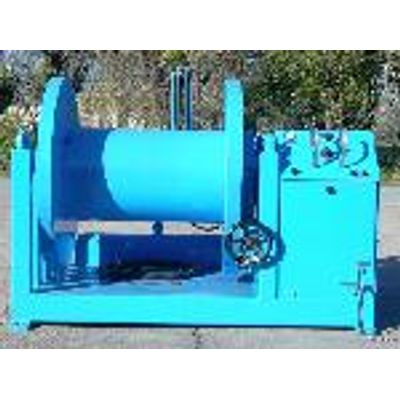

Includes Towreel, W62`x L58`xH60`. DRUM DIMENSIONS 28` DIA, FLANGE 46`, WIDTH 24` 1000M 17.33mm CABLE. 480VAC, 3PHASE, 60HZ .25 hp, 3200 lbs bare drum pull @ 200 FPM. Winch may vary depending on length and diameter of the cable.

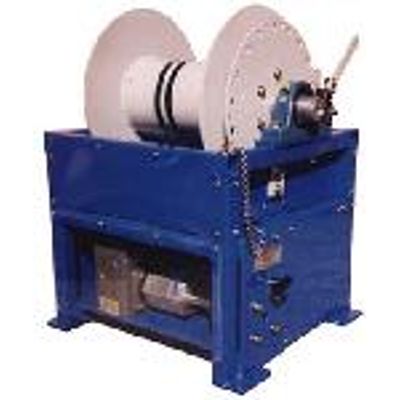

The CSW-6 has proven to be a versatile winch which may be used in almost any application. This winch comes as a complete package, including a range of standard features only available as options on our other winches. Typical uses: side scan sonar, water sampling, towed bodies, environmental and pipe line monitoring, coring, subsea video, CTD profiling.

Includes Towreel, W58`x L58`xH58`.DRUM DIMENSIONS 20` DIA, FLANGE 46`, WIDTH 24` 5000M .316 CABLE. 460VAC, 3PHASE, 50-60HZ .40 hp, 4400 lbs bare drum pull @ 200 FPM. Winch may vary depending on the length and diameter of the cable.

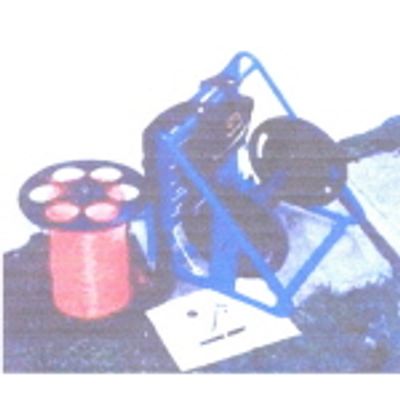

Winch, Portable (Backpack) Manual 2 Speed. HR-1/HR-2 Backpack Winch. The HR-1 and HR-2 are designed for line handling duties. The HR-1 is direct drive, while the HR-2 has two speeds available.

The HR-1 and HR-2 are designed for line handling duties. The HR-1 is direct drive, while the HR-2 has two speeds available.

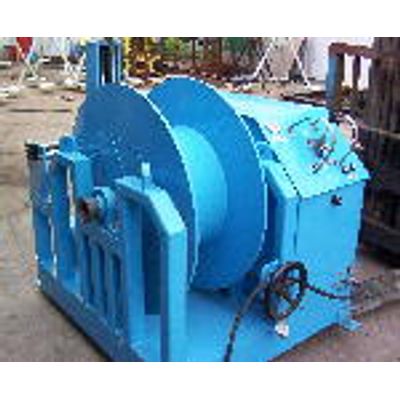

Includes Towreel, Hydraulically operatation. Drum dimensions 20` dia, flange 34`, width 18`. Capacity 2500M 1/4` cable. 230/460VAC, 3PHASE, 50-60HZ 10 hp, Universal Motor User selectable VAC. 1200 lbs bare drum pull @ 200 FPM. Winch may vary depending on length and Diameter of cable.
