Gouda Geo-Equipment B.V. products

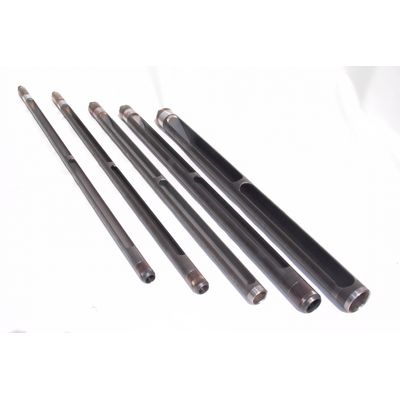

Soil sampling is simple and inexpensive tool for both geotechnical and environmental soil investigation. It easily returns your investment many times over. The window type soil samplers are driven into the soil by means of the penetrometer pushing rig. The samplers come standard with M22 threaded connections and can be connected to the CPT sounding tubes by means of an cross-over tube. Since the window sampling tubes feature an internal scoop on the top end, excess soil material can easily pressed out and soil samples can be taken from any desired depth. Because of the high quality of the steel, the samplers walls are relatively thin (thin wall sampling) keeping the resistance to penetration as low as possible. Because of the open construction of window sampling tubes the samples taken can be scrutinized and removed quite easily.

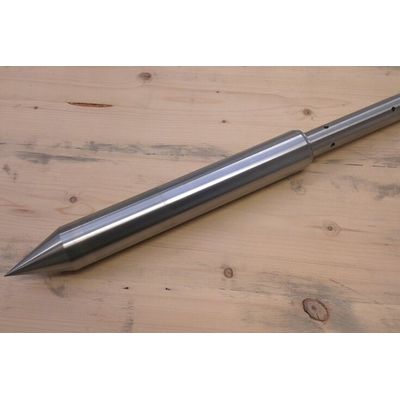

Simple to use device for the injection of viscous fluids (molasses) into the ground. Outer diameter of the sleeve: 55 mm. Apex angle of the conical tip: 30°. Number of injection holes: 8. Diameter of injection holes: 6 mm.
