Hebei Tobee Pump Co.,Limited products

Slurry Pumps - AH Slurry Pump

Tobee - Slurry Pump

Tobee AH Series Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Expecially for handling high abrasive, high density slurries.

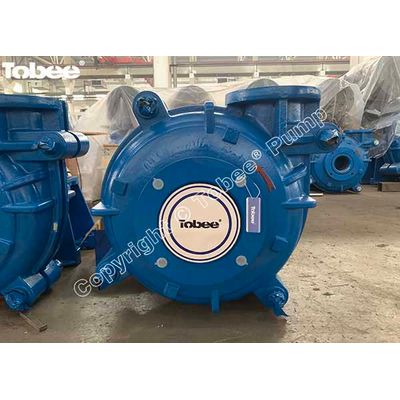

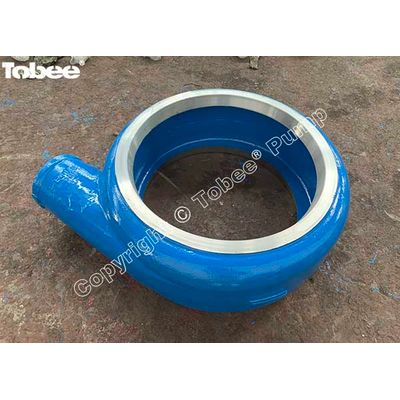

Tobee - Centrifugal Slurry Pump Part Volute Liner E4110A05

Email: Sales7@tobeepump.com Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.cc | www.hydroman.cn Slurry pump Volute Liner is an important wear part of slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.

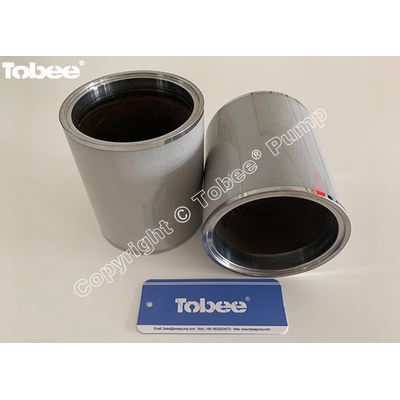

Tobee - Slurry Pump Ceramic Shaft Sleeves D075J04

Email: Sales7@tobeepump.com Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.cc | www.hydroman.cn Slurry Pump Ceramic Shaft Sleeve, which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and down-time were reduced accordingly. Tobee’s slurry pump ceramic shaft sleeves are precision formed of high density alumina, fired, and ground to size. The hardness of ceramics (9.0 to 9.5 MOH Scale) resists this destructive action, In addition, the ceramic coated sleeve surface is highly polished which, together with its lower co-efficient of friction, results in extended sleeve life and long service from the packing.

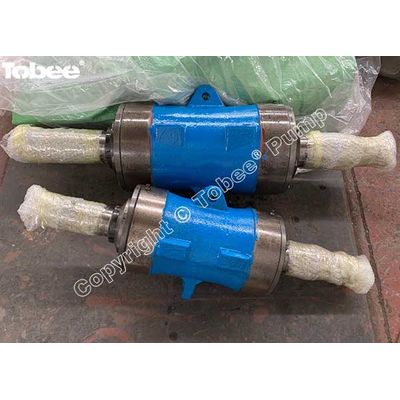

Tobee - Horizontal Slurry Pump Bearing Assembly E005M

Email: Sales7@tobeepump.com Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.cc | www.hydroman.cn SPECIFICATIONS: Bearing Housing: HT250 Bearing: ZWZ, SKF, TIMKEN etc Shaft: 40CrMo Shaft Sleeve: SS420 Matched Model: AH, HH, L, M, SP(R), G/GH, AF Slurry Pump Bearing Assembly also called rotor assembly, It is a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame. It is most important part for drive power unit. The bearing assembly is to connect the slurry pump and motor as a complete pump working system. Its stability will directly affect slurry pump operation and worklife.

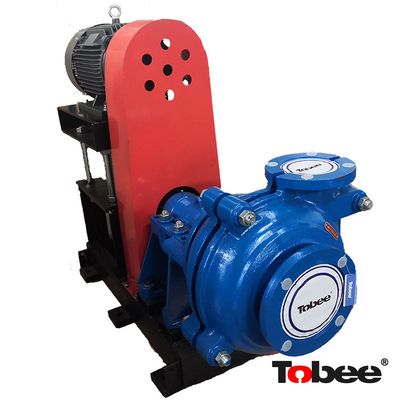

Tobee - analogues 6x4 AH Slurry Pumps for Mining Industry

Email: Sales7@tobeepump.com Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.cc | www.hydroman.cn 6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slury pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids. 6x4E-AH Slurry Pump is designed for continuous conveying highly abrasive and high-hardness, high-concentration, low-corrosion slurries contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones in the tailing mining, minerals recycling, coal washing, industries of metallurgy, pulp and paper making, power plant, building material & chemical engineering, sand dredging etc

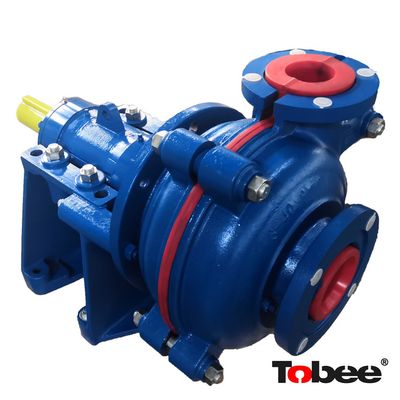

Tobee - Horizontal Slurry Pumps

Email: Sales7@tobeepump.com Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.cc | www.hydroman.cn 2/1.5B-AH Slurry Pump is designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. It widely used for Pipeline transport, High velocity hydraulic transport, Mineral processing, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling.

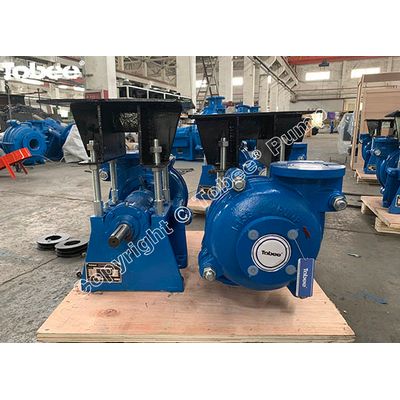

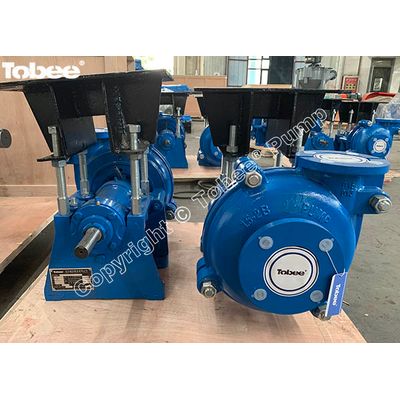

Tobee - Small Centrifugal Slurry Pumps Price

Email: Sales7@tobeepump.com Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.cc | www.hydroman.cn 1.5/1B-AH Slurry Pump is end-suction, split-case, centrifugal slurry pumps have set the world standard for heavy duty abrasive pumping applications. With large shaft diameters, heavy duty bearing assemblies and robust slurry pumping capacity, Application customization comes standard with this line by applying a wide variety of metallic and elastomeric parts options, an assortment of seal arrangements, and a standard impeller adjustment mechanism incorporated into every base assembly.

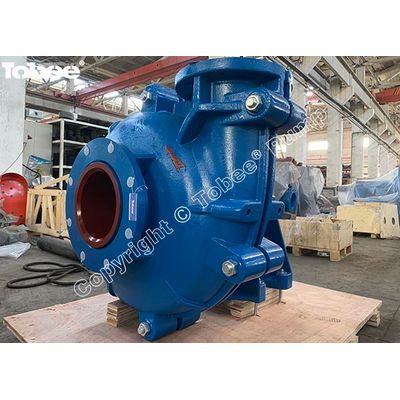

Tobee - Medium duty slurry pumps price Chile

Email: Sales7@tobeepump.com Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.store | www.tobee.cc | www.hydroman.cn 10x8E-M Medium Duty Slurry Pump is cantilevered, horizontal and centrifugal with double casing structure, It mainly suitable for pumping medium concentration slurries, 10x8E-M slurry pump applies in coal washer processing, handling with the fine ore and tailings in metal mine, handing combined bottom and fly ash in a thermal power station etc. Design Features: √ Modular design for ease of maintenance. √ Medium duty one piece frame base with lifting points for easy maintenance. √ Standard ductile iron outer casings for higher working pressures and incorporating lifting points. √ Standard or advanced bearing assembly improves reliability to extend bearing life reduce lubrication costs. √ Shaft sealing for increased reliability, stuffing box, expeller, elevated seal or mechanical seal options available. √ Standard or advanced impeller design options available.

Tobee - Polyurethane Lined Mill Discharge Slurry Pump

4x3DD-AH Polyurethane Slurry Pumps are made of polyurethane cover plate liner and polyurethane frame plate liner which wear resistance is excellent. Pump Designs: 4x3DD-AH slurry pump with polyurethane lining with excellent hydrolysis resistance, oil, acid and alkali, corrosion resistance. Polyurethane pumps have the advantages of high conveying efficiency, because the surface is smooth, no burrs, non-stick materials, low friction coefficient. Slurry pump polyurethane liners sets of special production process makes the polyurethane is directly cast with a steel skeleton, polyurethane adhesive layer and steel skeleton bonding firmly, not degumming, continuous layer. Polyurethane lined pump has excellent resilience and impact resistance, which can effectively reduce the impact of the conveying medium on the pump. The wear resistance of polyurethane slurry pump is generally more than 3-5 times that of rubber slurry pump parts and metal slurry pump parts.

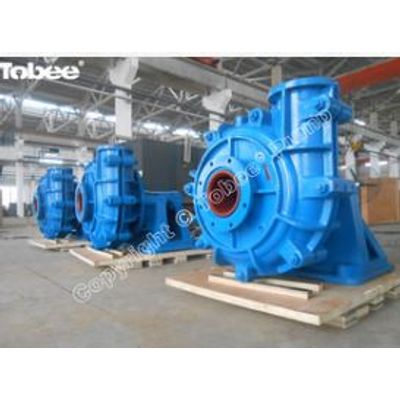

Tobee - Mineral Sands Slurry Pump

Tobee® 4x3C-AH Slurry Pump is engineered with the latest hydraulic and wear technologies to cope with the most severe corrosive and abrasive slurry applications, The 4x3C-AH pumps feature patented innovative designs that can significantly reduce the operational costs of slurry pumping, It is widely used in industry of mining, electrical power, metallurgy, coal, environmental protection, etc for transportation of abrasive solid slurry. Tobee® 4/3C-AH Slurry Pumps Applications: Transfer of abrasives and high density slurries in: • Mining • Metallurgical Processing • Civil Construction • Heavy Industry • Processing
