HITEMA INTERNATIONAL S.R.L. products

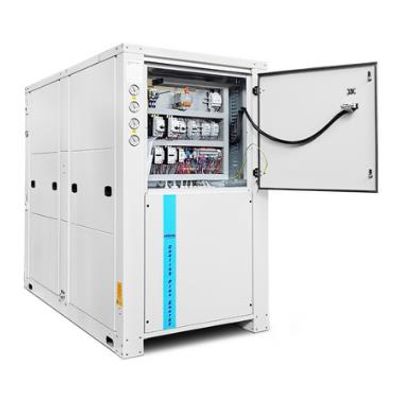

Standard Configuration:. Compressors:Rotary (models 003÷005) or Scroll (models 008÷480). Condenser:Brazed plate (ENW.003÷ENW.055) or Shell & Tube (ENW.061÷ENW.480). Evaporator:Coaxial (models 003÷100) or Shell & Tube (models 130÷480). Expansion Valve: Thermostatic. Protection Rating: IP54. Refrigerant: R410A, R454B; R32. Cooling Capacity Range: 3,8kW ÷ 424kW.

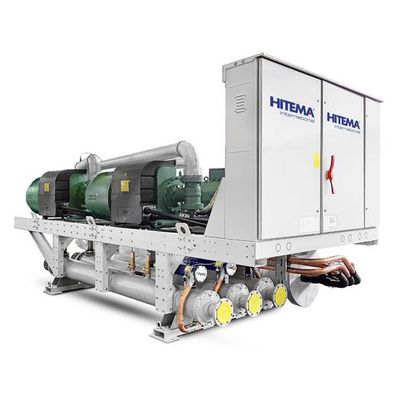

Standard Configuration:. Compressors: Screw. Condenser: Shell & Tube (EWB models only). Evaporator: Shell & Tube. Expansion Valve: Electronic. Protection Rating: IP54. Refrigerant: R134a; R513A and R1234ze. Cooling Capacity Range 291kW ÷ 2240kW,

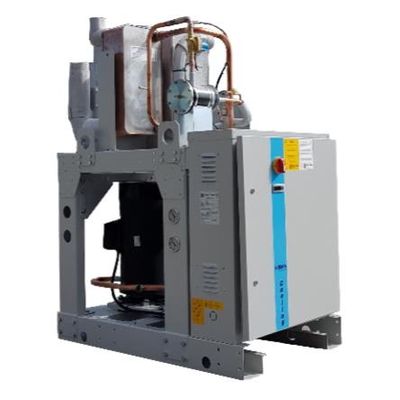

STANDARD CONFIGURATION: Compressors: Scroll. Condenser: Stainless steel with brazed-plate. Evaporator: Stainless steel with brazed-plate. Expansion Valve: Thermostatic. Protection Rating: IP54. Refrigerant: R410A, R454B; R32. Cooling Capacity Range 50kW ÷ 371Kw.
