Idroelettrica S.p.a. products

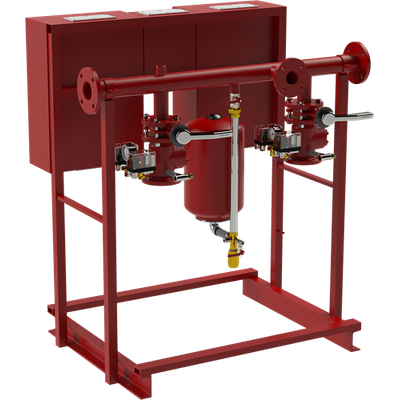

The fire-fighting units designed by Idroelettrica adhere to the UNI EN 12845 standards and are equipped with Vertical Turbine Pumps (VTP). These units are engineered to provide reliable and robust fire protection across various applications including shopping centers, hospitals, infrastructure projects, industries, hotels, residential buildings, cinemas, theaters, and schools. Each component of these units meets strict industry requirements, ensuring high performance and safety. The units feature a range of accessories such as GSM modules and external sirens to enhance operational efficiency. They offer significant advantages including durability, compliance with safety standards, and ease of integration into existing systems. The manufacturing specifications underline the use of high-quality materials and advanced engineering practices to meet rigorous safety standards.

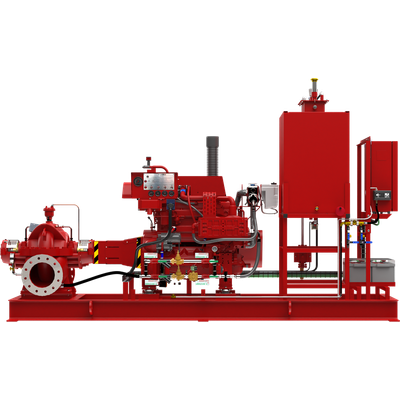

Idroelettrica S.p.a. offers fire-fighting pump sets that adhere to NFPA-20 and UL/FM approval standards. These systems are engineered and assembled to meet all the specific criteria set by these standards, ensuring optimal performance and reliability in critical applications such as shopping centers, hospitals, infrastructure projects, industrial facilities, hotels, residential buildings, cinemas, theaters, and schools. Each pump set can be customized with standard or specially designed accessories to fulfill the complete pump room arrangement. Optional accessories include a GSM module for remote monitoring and control and an external siren for enhanced alert capabilities. Idroelettrica`s pump sets are tailored to meet the rigorous demands of various industries requiring dependable fire suppression systems.

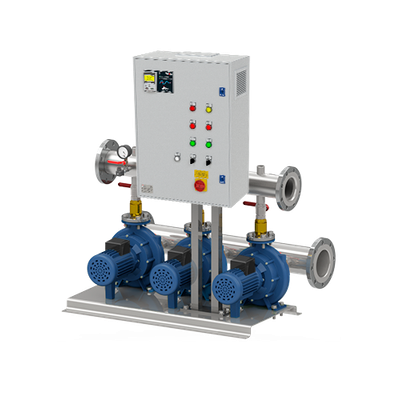

CENTRIMAX pressurization units are constructed with standardized horizontal axis centrifugal electric pumps in a monobloc design, driven by IE2 three-phase electric motors. The units come in configurations of two to three pumps, designed for continuous operation in environments needing high flow rates and pressures. These units are suitable for civil, industrial, and agricultural applications. They are powered by inverters or electronic control units and offer versions operated by pressure switches or transducers. Additionally, they can operate with pressostatic or constant pressure modes. For unique applications, such as using osmotized or deionized water, specific technical details should be communicated to the technical department.

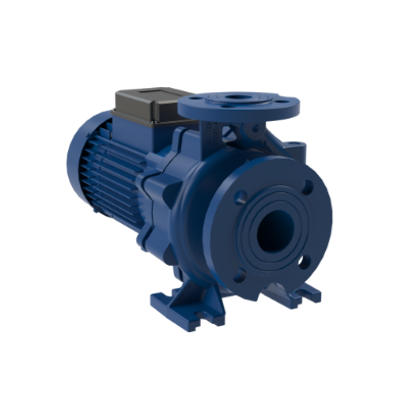

Idroelettrica`s Centrinorm centrifugal electric pumps are designed for a range of applications including civil, industrial, and agricultural uses. These pumps are constructed to meet EN 733 standards and are available with high-efficiency IE2 motors for power up to 5.5 kW and IE3 motors for higher power requirements. The pump`s body is made from G25 cast iron and normalized according to UNI standards, allowing for motor replacement without detaching the pump body from the system piping. The design enables the pumping of clean, non-abrasive, and chemically non-aggressive liquids. Suitable for a wide array of uses such as water distribution, heating, air conditioning, irrigation, and even fire-fighting systems, these pumps are built on a robust painted steel section base frame. Specialized configurations and sealing systems can be provided for specific applications and liquids.

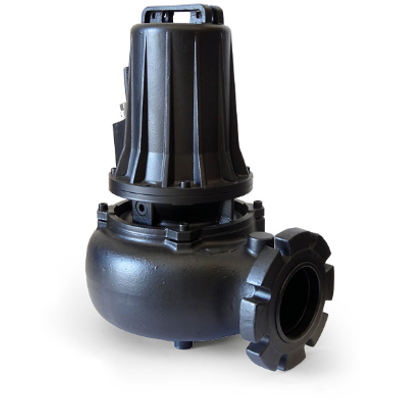

These flanged, vortex-type electric pumps are designed with a retracted impeller to ensure wide free passages, making them suitable for handling various liquids and waste. They are particularly useful for transporting civil and industrial wastewater, organic sludge, zootechnical sewage, and liquids containing solid matter. These pumps can be used in a variety of fields including industrial, agricultural, zootechnical, residential, sports, hospital, and general accommodation facilities. Constructed from cast iron, the pump body, impeller, and diffuser ensure durability. The lower mechanical seal consists of silicon carbide and Viton, while the upper mechanical seal is made of ceramic and graphite up to 7.5 kW, and silicon carbide and Viton for higher capacities over 7.5 kW.
