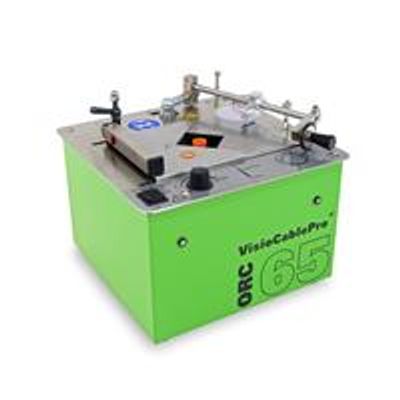

Visio Cable - Model ORC 65 -Cable O-Ring Cutter
FromiiM AG
With the Cable O-Ring Cutter 65 it is really easy and quick to cut sample slices (cable sheath cutter) with an outer diameter from 1 to 65 mm (
Most popular related searches
cable cutter
sample preparation system
sample preparation
cable ring
laboratory product
process monitoring
The Cable Cutter 65 prepares your cable samples optimally for qualitative measurements in offline cable measuring instruments. With its compact dimensions and low weight it is optimally suitable for the application in the lab and in the production.
- Sample preparation according to IEC 60811
- Very robust device
- Thin, evenly and parallel cut samples with a smooth surface
- Quick and efficient cut
- LED to illuminate the cutting process
- Precise and repeatable measuring results
- Size (WxLxH) 400 x 400 x 280 mm 15.75 x 15.75 x 11.02 Inch
- Weight 8.5 kg / 18.7 lbs
- Supply Voltage 100 - 240 V / 50 - 60 Hz
- Input Power max. 40 Watt
- Knife Martor Grafix 680 Knife
- Product No.: 404.0004.05
- Lighting LED
- Ø - Cable sample 1 - 65 mm 0.04 - 2.56 Inch
