IMR Environmental Equipment, Inc. products

The IMR 5000 is state-of-the-art Continuous Emission Monitoring System, and is designed for a wide variety of stationary emission monitoring applications. The IMR 5000 is a stand-alone analysis system that works automatically. Available in a 19” rack mount or rugged wall mounted enclosure. The wall mount enclosure meets NEMA type 4X (IP65) standards. The modular approach of the IMR 5000 allows multiple gases to be measured simultaneously.

Used for non-compliance applications, the ET101/102 is a simple, reliable, cost effective way to measure opacity or dust in a stack or duct.

The ET 301 is a dust monitor using well-proven technology providing accurate and rapid results. Being adaptable it can be used on duct sizes from 250mm to 5m making the ET 301 a suitable sensor for a wide range of applications where a dust measurement is required. ET 301 continuous dust monitor uses the well-proven sensor technology to directly measure mass particulate concentration by sensing the frictional charge created when particles collide with a conductor.

The use of the measuring principle of dynamic pressure and PT100 assures a device which is easy in design and operating as well as the real-time monitoring of the measuring parameters. The operating and display unit is integrated in the probe head. On the high-quality display all measuring values, status information and parameters are displayed. Furthermore, a real-time display as line diagram is possible.

The use of the measuring principle of dynamic pressure and PT100 assures a device which is easy in design and operating as well as the real-time monitoring of the measuring parameters. The operating and display unit is integrated in the probe head. On the high-quality display all measuring values, status information and parameters are displayed. Furthermore, a real-time display as line diagram is possible.

The VCEM 5000/5100 represents the latest generation of unique flow monitors. The VCEM 5000/5100 represents the latest generation of unique flow monitors. These systems measure the velocity of stack gases using a highly accurate time of flight measurement that is derived from a cross correlation analysis of the infra-red emissions of the turbulent gas. Two robust infrared detectors are used for the prime sensing, mounted on the stack or duct typically 1m apart in the direction of flow. High efficiency air curtains are fitted to considerably extend the time between maintenance and periods and window cleaning (typically 1 year).

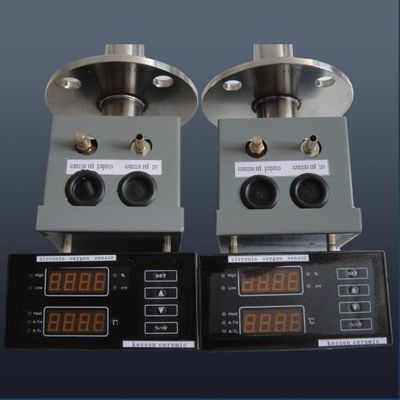

IMR 6400 High Temp intelligent oxygen analyzer uses an advanced anti-interference circuit and an anti-volatile data protection function. The display will automatically switch to any range for the set limit concentration on the alarm.

The flexibility of the IMR 5000 CEMS allows it to offer an endless set of possibilities to measure different parameters like CO, CO2, NO, NO2, CH4, HC, NH3, Cl2, HCl, H2, O3, SO2, H2S, O2, Velocity, Draft, Dust, Temperature and other parameters on request.

The IM 1120 Flue Gas Analyser with its new, innovative HMI concept is controlled via the IM-Smart app and ensures simple operation, handling and evaluation for the user. Free IM-Smart app for remote operation of the IM 1120 with a tablet or smartphone. Various measurement modes with report generating function are available: Flue gas analysis - Differential Temperature - Oxygen Gap - CO Ambient - Soot Number Entry. Reports can be downloaded or shared as PDF documents. Rugged enclosure with magnetic mount.
