Inventive Systems Inc. products
Oil in Water Alarm

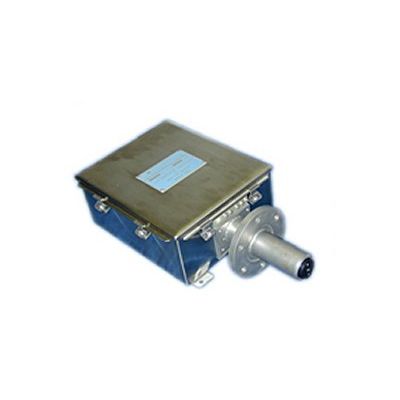

OILARM - Model BA-200 - Oil Content Alarm Devices
Self-cleaning 15 ppm Oil Content Alarm built with U.S.C.G. and A.B.S. approvals, fulfilling all the requirements of IMO Resolution MEPC.60(33), suitable for detection of oil-in-water from 2ppm to >150ppm. Power requirements: 120VAC, 50/60 Hz at 60 watts. Equipped with a 6 hole #150 Navy flange.
OILARM - Model BA-200HT - High Temperature Oil Content Alarm Devices
Self-cleaning 15 ppm Oil Content Alarm built with U.S.C.G. and A.B.S. approvals, fulfilling all the requirements of IMO Resolution MEPC.60(33), suitable for detection of oil-in-water from 2ppm to >150ppm. Power requirements: 120VAC, 50/60 Hz at 60 watts. Equipped with a 6 hole #150 Navy flange.
Oil in Water Alarm - Weather Proof
OILARM - Model BA-200WP - Weather Proof Water Alarms Devices
BA-200 with a NEMA4X Weather Proof case. Not submersible.
OILARM - Model BA-200WPHT - Weather Proof High Temperature Alarms Devices
BA-200 with a NEMA4X Weather Proof case. Not submersible.
Oil in Water Alarm - Explosion Proof
OILARM - Model BA-200X - Explosion Proof Alarms Devices
BA-200 with Explosion Proof Housing (NEMA4X, 7 & 9, Classl, Division 1, Group D). Not submersible.
OILARM - Model BA-200XHT - Explosion Proof High Temperature Alarm Devices
BA-200 with Explosion Proof Housing (NEMA4X, 7 & 9, Classl, Division 1, Group D). Not submersible.
Oil in Water Monitors
OILSENTRY - Model OS-100 - Oil Content Monitor
Oil Content Monitor built to USCG/IMO (MEPC.60(33)) requirements; consisting of self cleaning Sensor Unit, Control Unit with built-in Strip Chart Recorder, interconnect cable, Remote Status Indicator, and tech manual.
OILSENTRY - Model OS-100HT - High Temperature Oil Content Monitor
Oil Content Monitor built to USCG/IMO (MEPC.60(33)) requirements; consisting of self cleaning Sensor Unit, Control Unit with built-in Strip Chart Recorder, interconnect cable, Remote Status Indicator, and tech manual.
OILARM Spare Parts
OILARM - Model 1014-3 - Explosion Proof Sensor Kit
Sensor Kit (includes Sensor Head Assembly and precalibrated and matched Sensor circuit card assembly).
